ZTW BORMECH 630/180 - 44L internal tank
+48 603 775 778
Sure! Here's a professional English translation of your product description:
Product Description

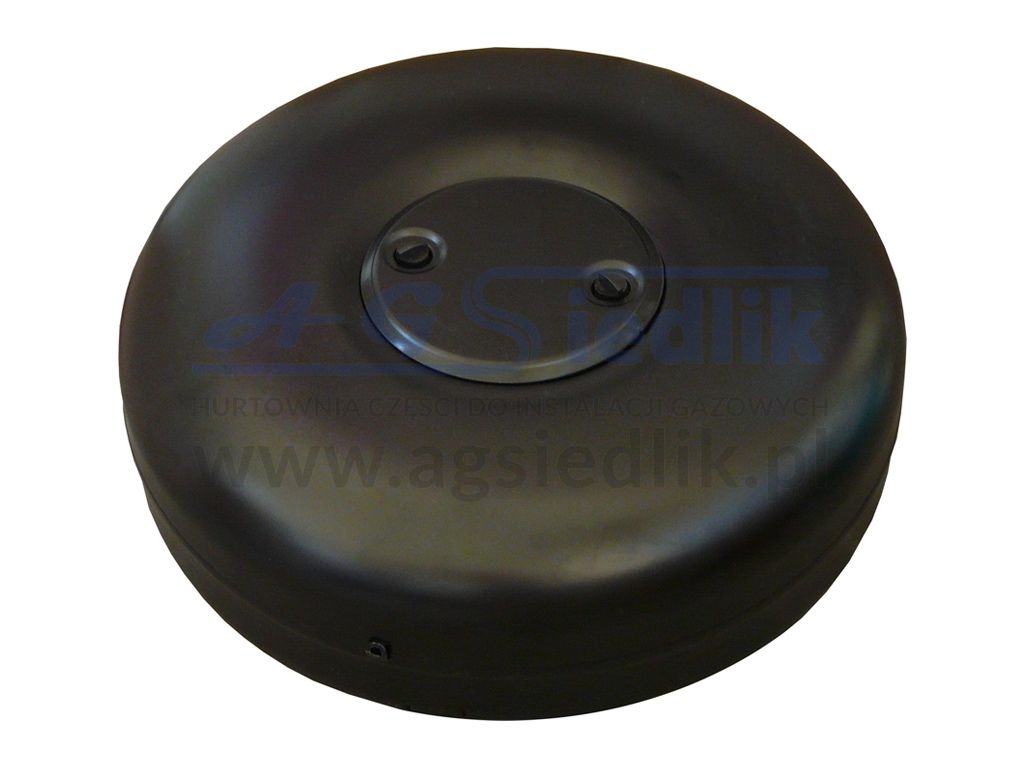

Toroidal Internal Tank ZTW (designed for installation in place of the spare wheel, inside the vehicle)
Manufacturer: BORMECH
Size:
630/180 - 44L
Tank Specifications
| Tank Type | Diameter D [mm] | Height H [mm] | Capacity V [L] | Allowable Fill (80%) [L] | Weight [kg] |
|---|---|---|---|---|---|
| ZTW T1S 630-180 | 630 | 180 | 44 | 35.2 | 20 |
Technical Specifications:
-
Installation type: Internal
-
Mounted to the vehicle body using 2 bolts
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature range: -20°C to 65°C
-

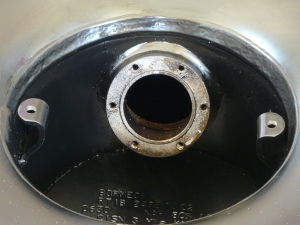

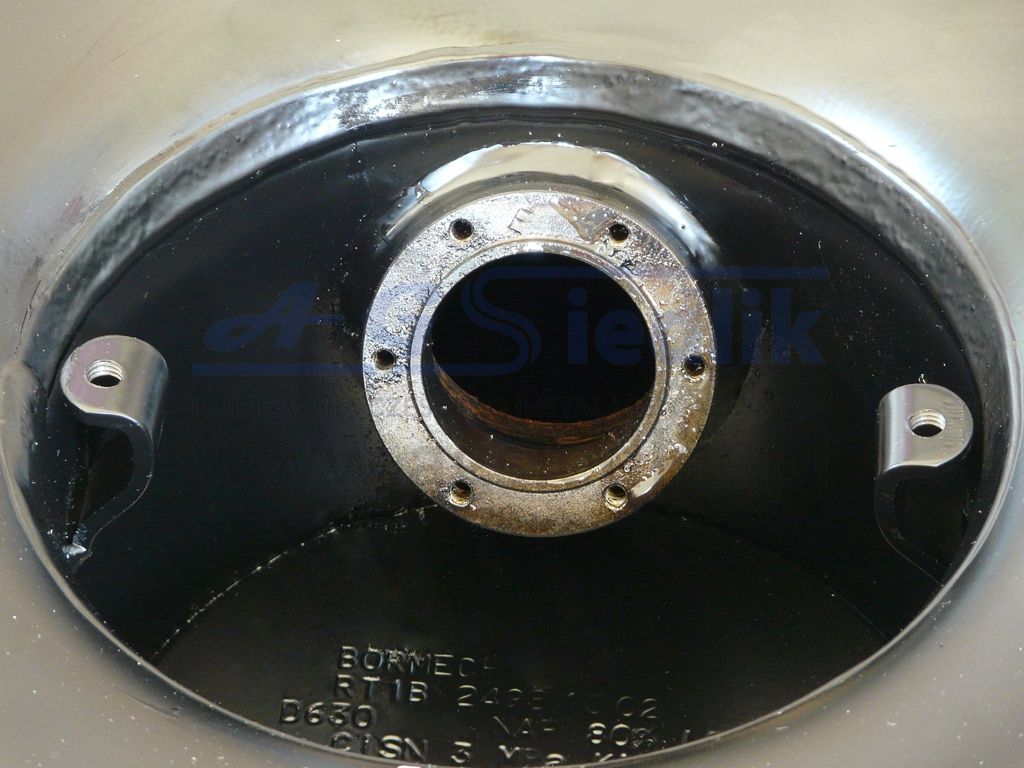

Multivalve mounting with 30° angled head
-
Multivalve fixed with 6 M5x1.0 Allen screws
Compatible Multivalves:
-
Tomasetto E8 67R-01 3018
-
Lovato E4 67R-01 94004
-
OMB E13 67R-01 0188
-
BRC E13 67R-01 0004
-
Emer E3 67R-01 58416
-
Tartarini E8 67R-01 3018
-
Tartarini E8 67R-01 0192
-
Polgas E20 67R-01 0512
-
Landi Renzo E13 67R-01 0144
-
Landi E13 67R-01 0129
-
Vialle E4 67R-01 0223
-
Vialle E4 67R-01 0031
-
Ceodeux E2 67R-01 0031
-
Ceodeux E2 67R-01 0013
Set Includes:
-
Tank
-
Documentation (TDT certification required for vehicle inspection stations)
-
Mounting accessories (bolts, grommet)
Optional Accessories:
-
Multivalve 180/30
-
Multivalve 180/30 Extra
-
Multivalve gasket
-
Leak tester
-
Barrel connector Ø6
-
Barrel connector Ø8
Price shown is for one unit.
