AEB I-Plus POLYMER rail 4 cyl (+ nozzles Ø 2.4 + mounting kit)
+48 603 775 778
Product Description

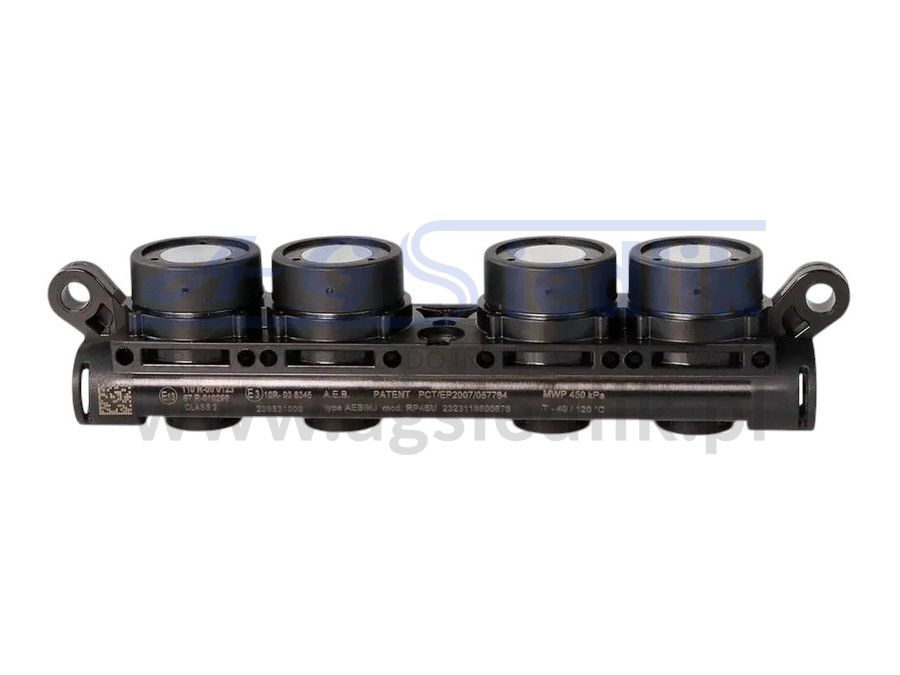

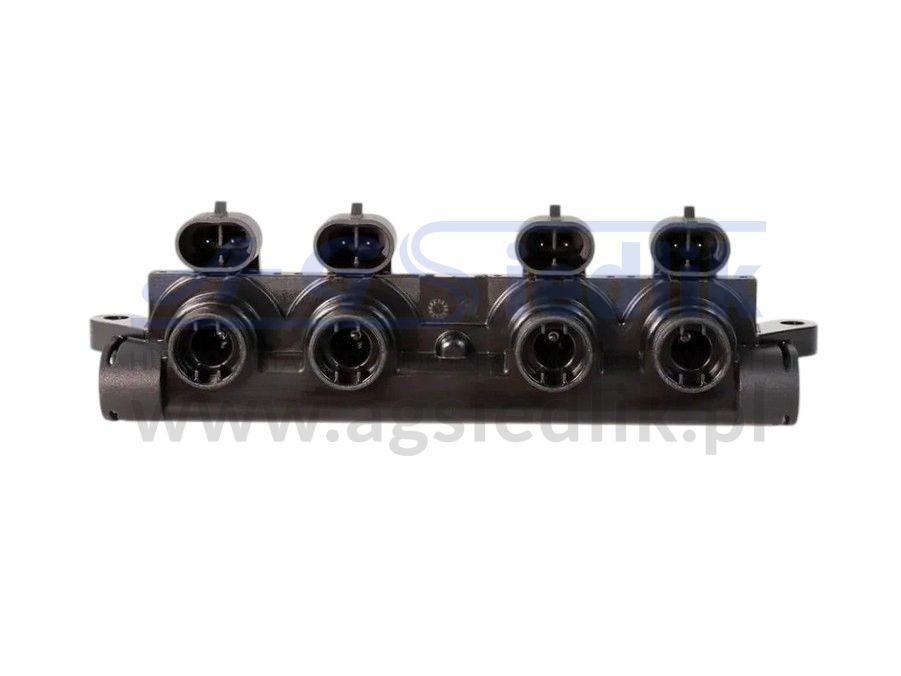

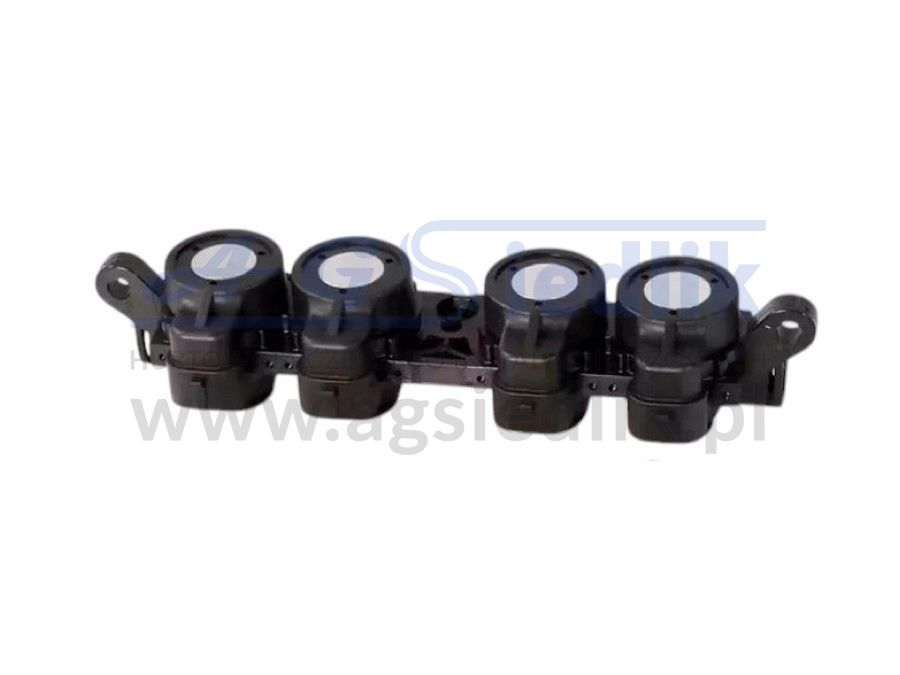

AEB I-Plus POLYMER Fuel Rail for 4 Cylinders
Technical Specifications
-
Fuel type: LPG / CNG
-
Coil resistance: 2 Ω
-
Operating pressure: 0.8–1.6 bar
-
Operating voltage: 10.8 – 14.4 V
-
Minimum injector opening time: 2.5 ms
-
Maximum injector opening time: 25 ms
-
Operating temperature: -20°C ÷ +120°C
-
Connector type: AMP SuperSeal
-
Gas inlet diameter: 12 mm (620500154)
-
Calibrated nozzles with snap-fit mounting (668515000)
-
Dimensions (L x W x H): 185 x 50 x 42 mm
-
Weight: 420 g

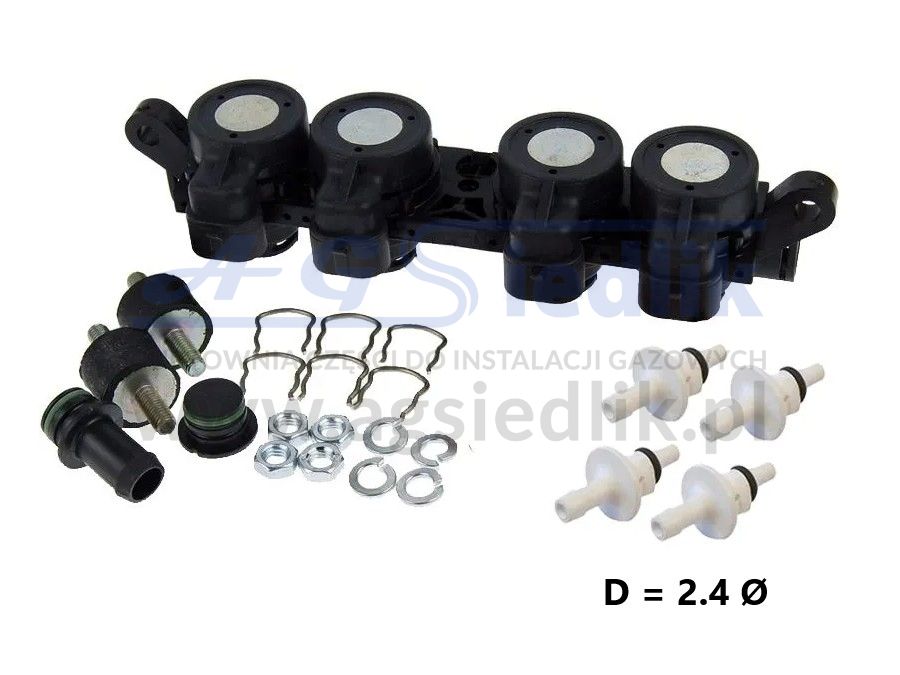

Included in the Set
-
AEB I-Plus POLYMER Fuel Rail for 4 Cylinders (238631000)
-
4-Cylinder mounting bag (620500154)
-
4 × calibrated nozzle 2.4 mm (668515000)
Available Calibrated Nozzles
-
Ø 1.6 mm – RED (668511000)
-
Ø 1.8 mm – YELLOW (668512000)
-
Ø 2.0 mm – GREEN (668513000)
-
Ø 2.2 mm – BLACK (668514000)
-
Ø 2.4 mm – WHITE (668515000)
-
Ø 2.6 mm – GREY (668516000)
Cylinder Capacity / 1 Cylinder
| Cylinder Volume | 10–15 kW | 15–20 kW | 20–25 kW | max 25 kW |
|---|---|---|---|---|
| 200–280 cc | 1.8 | 1.8 | – | – |
| 290–370 cc | 2.0 | 2.0 | 2.2 | – |
| 380–440 cc | 2.9 | 2.2 | 2.2 | – |
| 450–500 cc | – | 2.2 | 2.4 | 2.6 |
| max 510 cc | – | – | 2.6 | 2.6 |
Application Description
The fuel rail is characterized by fast and precise operation, minimal failure rate, and high efficiency.
Pricing
Price applies to 1 unit of the product.
