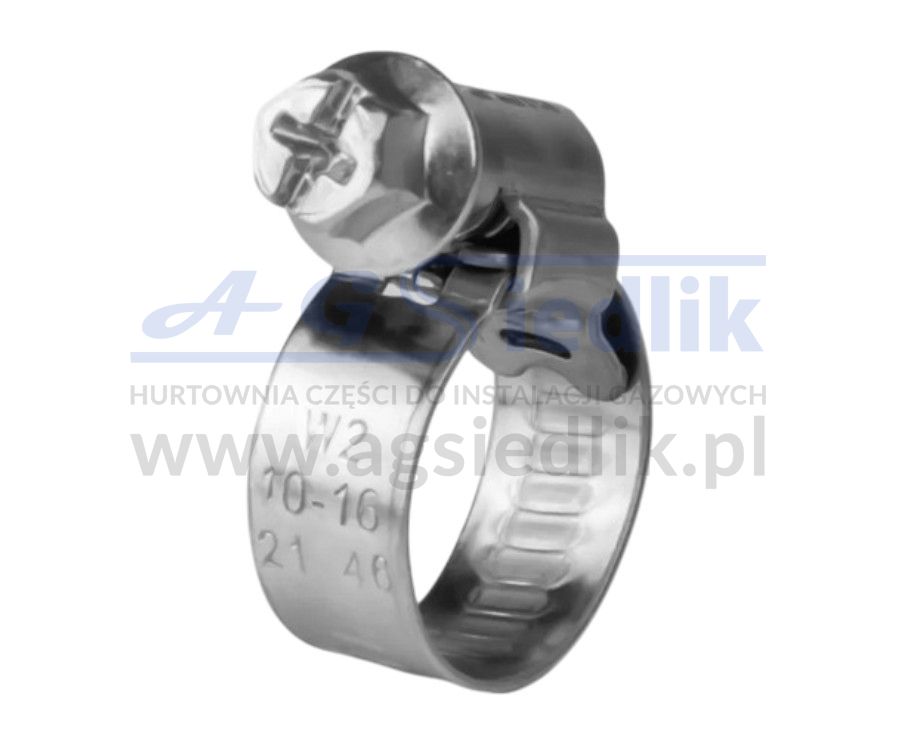

GEMI SX9 Worm Drive Hose Clamp (W2) – Size 10–16 mm / 1 piece

Product Description

GEMI SX9 Worm Drive Hose Clamp (W2) – Size 10–16 mm / 1 piece

Technical Specifications:

• Clamp range: 10–16 mm

• Band width: 9 mm

• Band and housing made of W2 stainless steel – DIN 1.4016

• Screw made of zinc-plated steel, Cr(VI)-free – DIN 1.1132 / 1.5525

Tightening torque:

• Sizes 10–16: max 2.5 Nm, recommended 2–2.5 Nm

• Recommended tightening speed: 350 RPM

Product Features:

• GEMI SX9 is a proven hose clamp offering excellent sealing performance.

• Its actual quality significantly exceeds the requirements of DIN 1.1132 / 1.5525.

• The asymmetrical embossed band teeth and asymmetrical screw housing prevent the clamp from twisting in the direction of the applied torque.

• The universal head of the clamp screw ensures easy installation with various tools.

• For professional installation, we recommend using a special screwdriver with a flexible shaft, enabling secure installation even in hard-to-reach areas.

The price is for 1 clamp.
