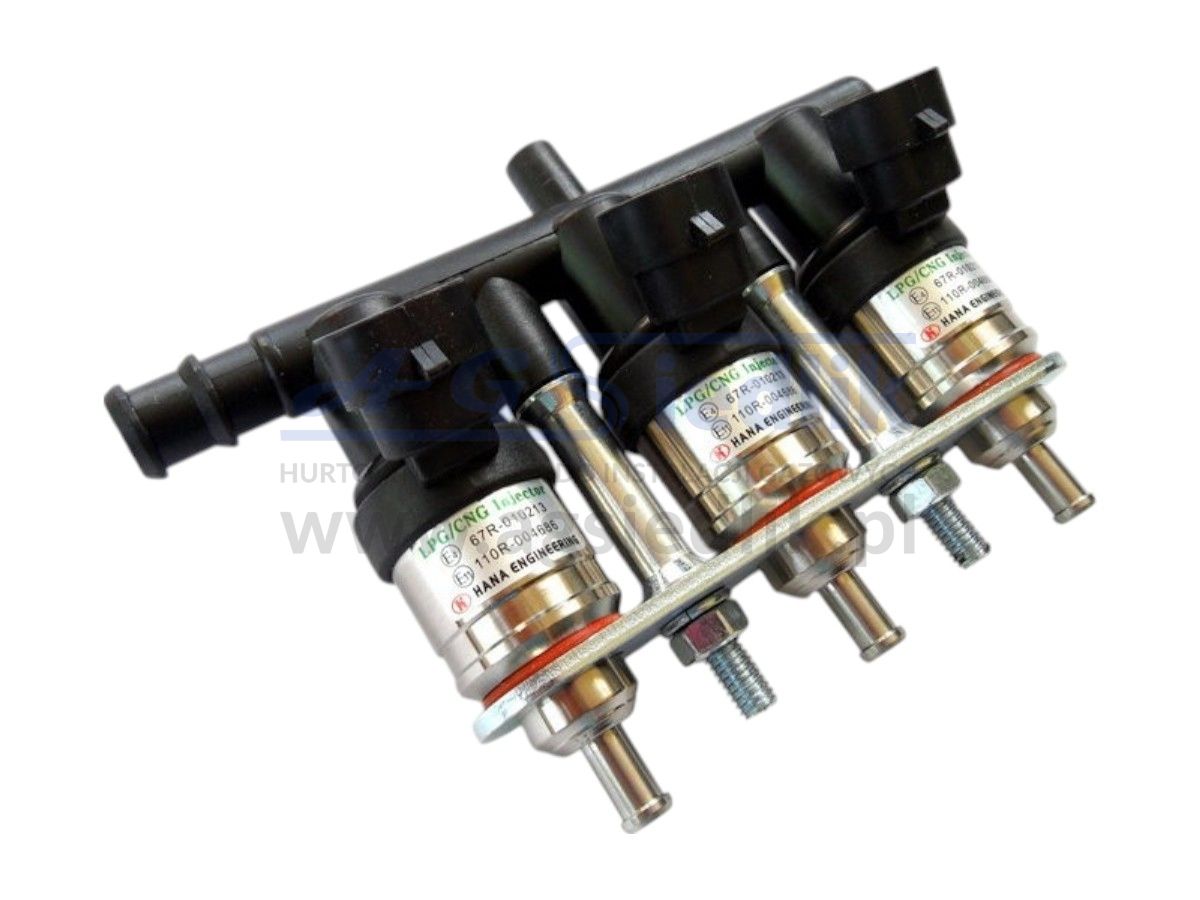

HANA H2001 Injector Rail – 3-Cylinder, Type A+ (Blue), 40–60 HP per Cylinder
279,00 zł
226,83 zł Excl. VAT
Shopping without registration You do not need to register to place an order
Order by phone+48 603 775 778
Product Description
HANA H2001 Injector Rail – 3-Cylinder, Type A+ (Blue)
Technical Specifications
-
Model: A+ H2001 (AA)
-
Resistance: 1.3 Ohm
-
Suitable for engines with power output: 40–60 HP per cylinder
-
Mounting type: rail-mounted
-
Connector: VALTEK type
Application Description
Below is a selection chart for HANA H2001 injectors:
| HANA Type | Nozzle Type | Resistance | Power Range (HP per cylinder ±15%) | 4 Cylinder | 6 Cylinder | 8 Cylinder | Operating Pressure (bar) |
|---|---|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | 1.3 Ohm | 40 / 50 / 60 | 160–240 HP | 240–360 HP | 320–480 HP | 0.8 / 1.0 / 1.2 |
| Type A (Green) | Type A (Green) | 1.9 Ohm | 33 / 42 / 50 | 132–200 HP | 198–300 HP | 264–400 HP | |
| Type B (Red) | 2.4 mm – One stripe | 1.9 Ohm | 26 / 32 / 39 | 104–156 HP | 156–234 HP | 208–312 HP | |
| Type C (Black) | 2.1 mm – Two stripes | 1.9 Ohm | 20 / 25 / 30 | 80–120 HP | 120–180 HP | 160–240 HP | |
| Type D (Purple) | 1.9 mm – Three stripes | 1.9 Ohm | 15 / 19 / 24 | 60–96 HP | 90–144 HP | 120–192 HP |
The price applies to 1 piece of the product.
