KME HAWK Injector Rail 2+2 Cylinders / 1 Ω

Product Description

KME HAWK Injector Rail 2+2 Cylinders

Technical Specifications

• Power per cylinder [HP]: 45 – 56

• Operating pressure [bar]: 1.0 ÷ 1.5

• Maximum operating pressure [bar]: 4.5

• Operating temperature [°C]: -40 ÷ +120

• Opening time at pressure [ms]: 1.45

• Closing time at pressure [ms]: 1.20

• Weight [g]: 0.40

• Coil resistance [Ω]: 1.0 ± 5%

• Supply voltage [V]: 12 ÷ 16

• Nozzle drilling diameter [mm]: 1.50 ÷ 3.0

• Coating: Fluoropolymer

• Durability [km]: > 100,000

• Connector/plug: Superseal

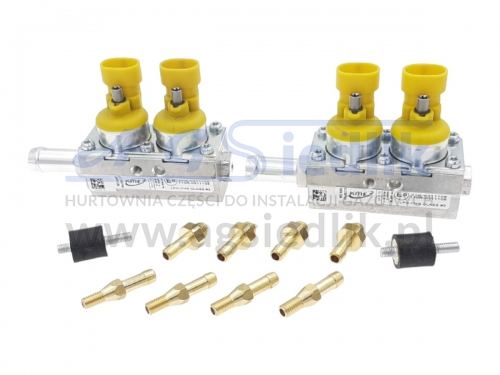

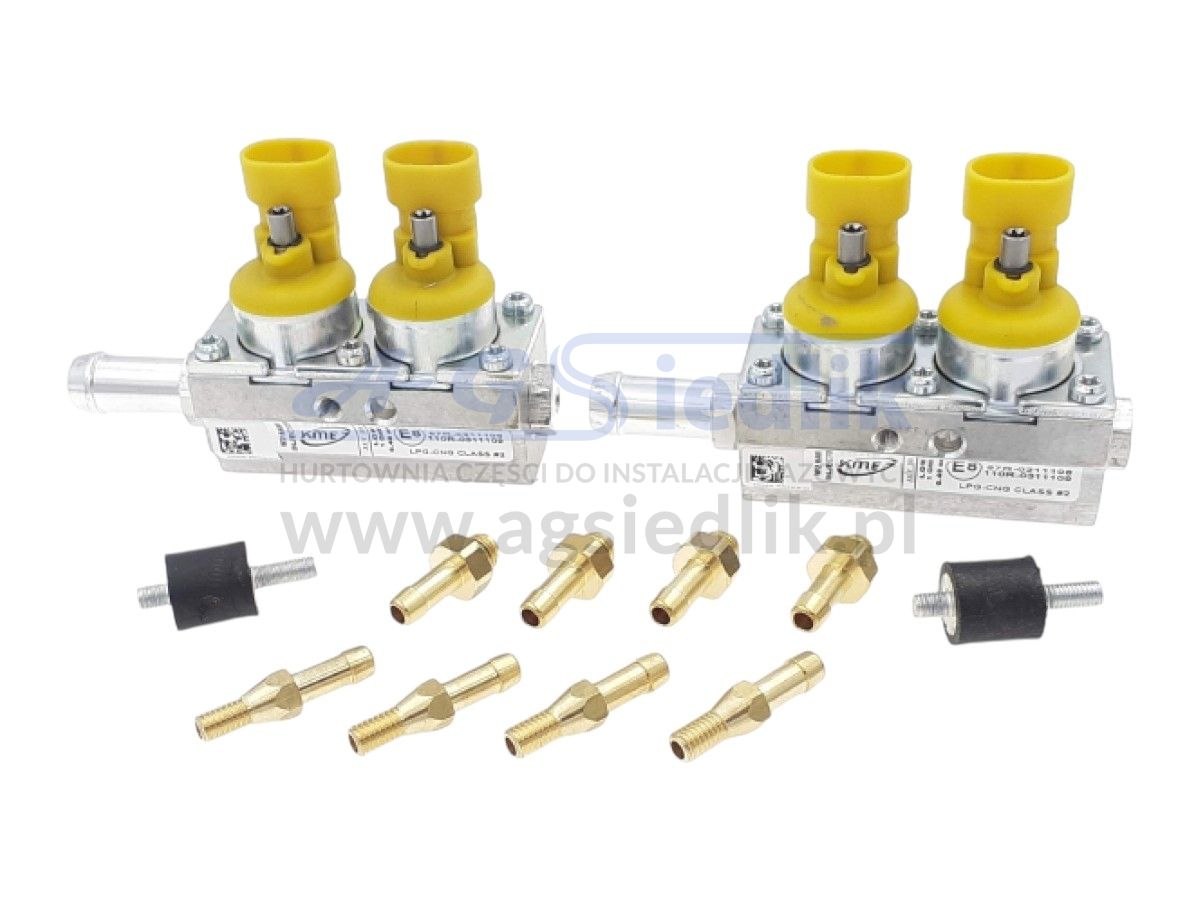

Set Includes

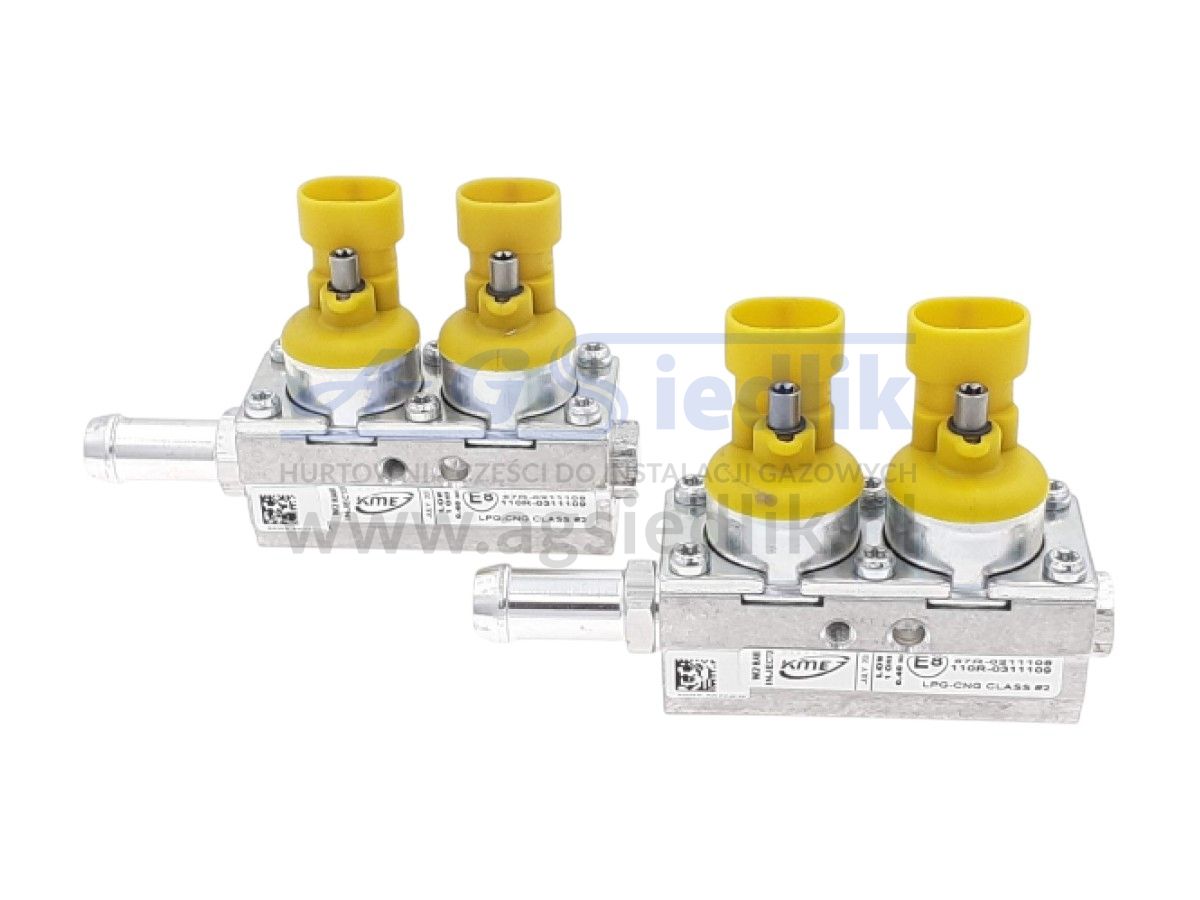

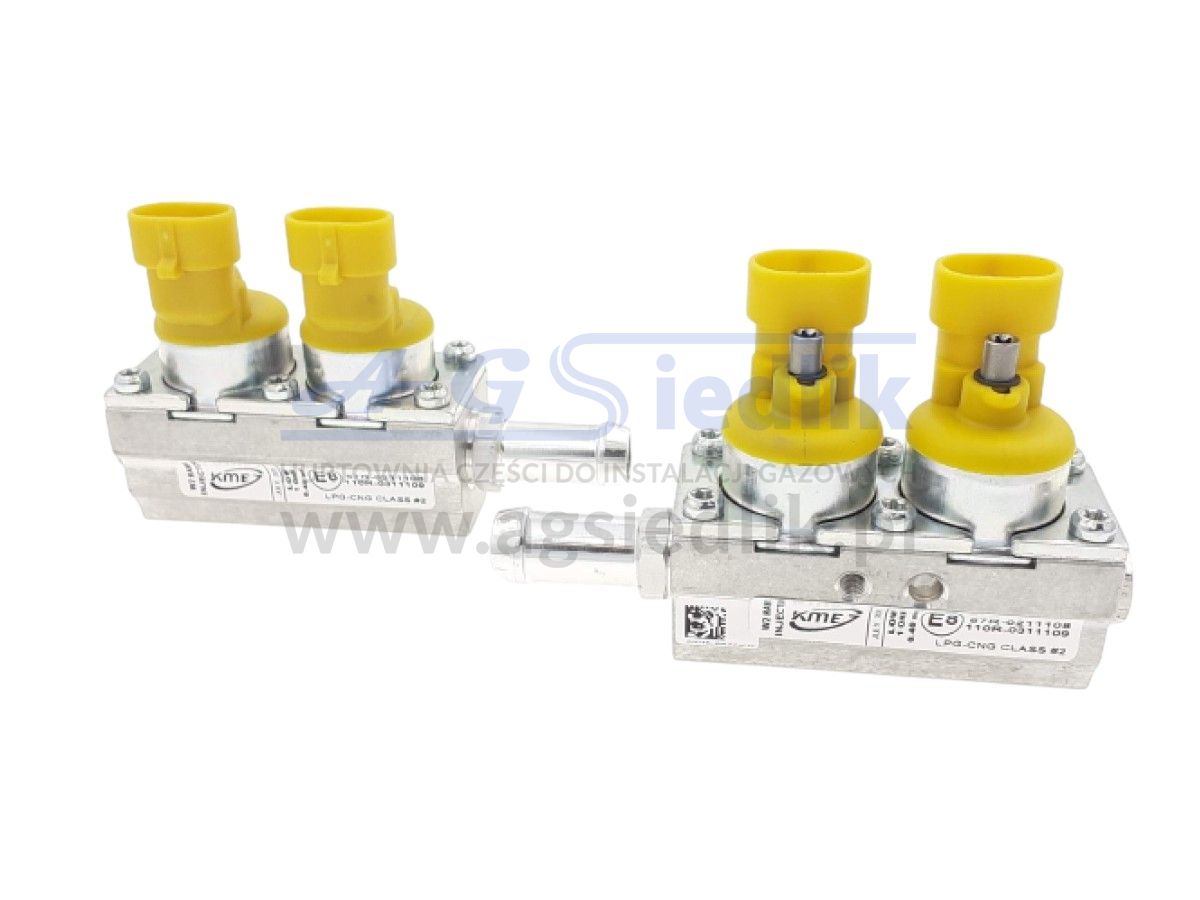

• 2x KME HAWK 2-cylinder rails

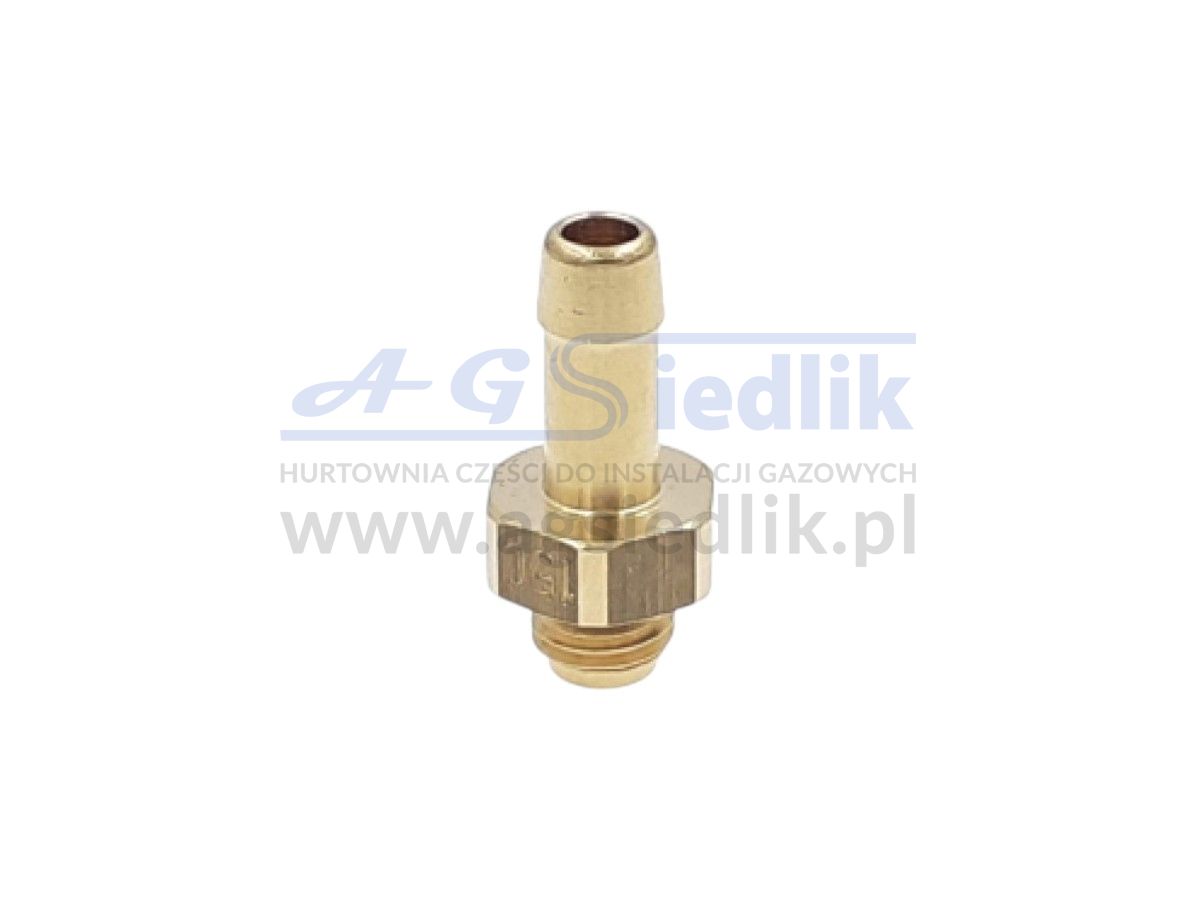

• 4x Calibration nozzles Ø 6

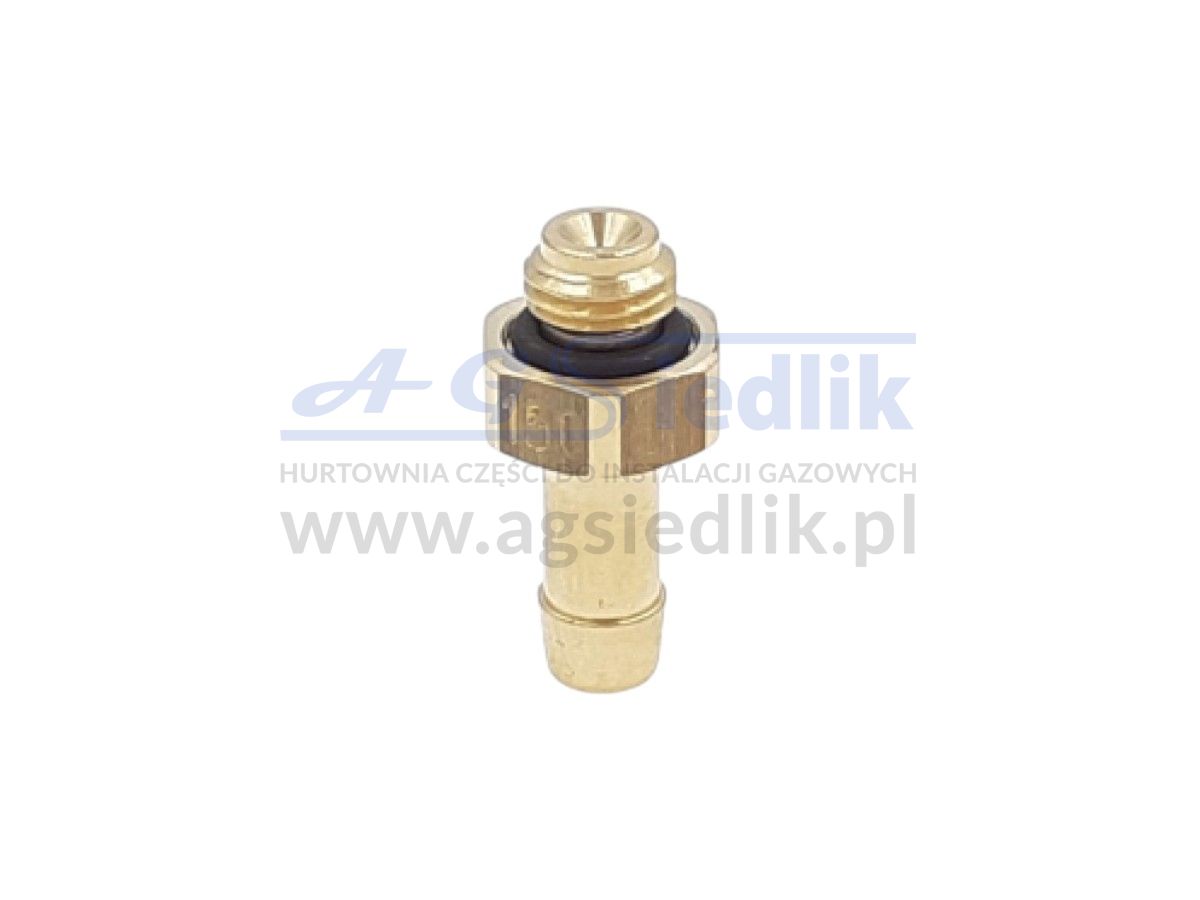

• 4x Intake manifold nozzles Ø 6

• 2x Gas inlet connectors Ø 12

• 2x Vibration dampers

Application
The KME HAWK injector is designed for LPG and CNG injection systems in all types of vehicle engines, including turbocharged engines.

Price refers to 1 complete set.
