LOVATO FSU P-T-MAP sediment filter + map sensor + vacuum
+48 603 775 778
Product Description

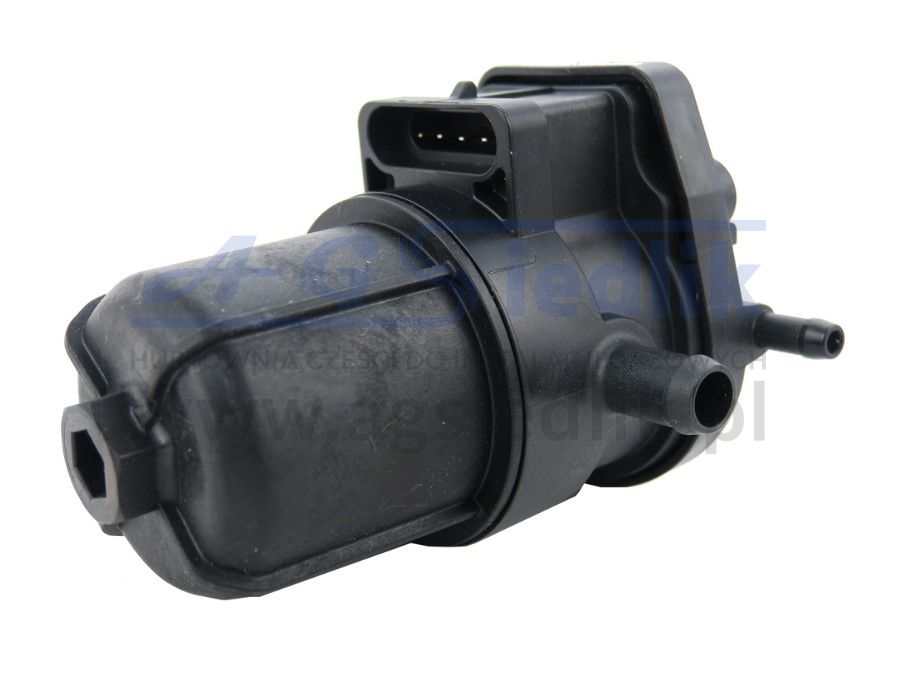

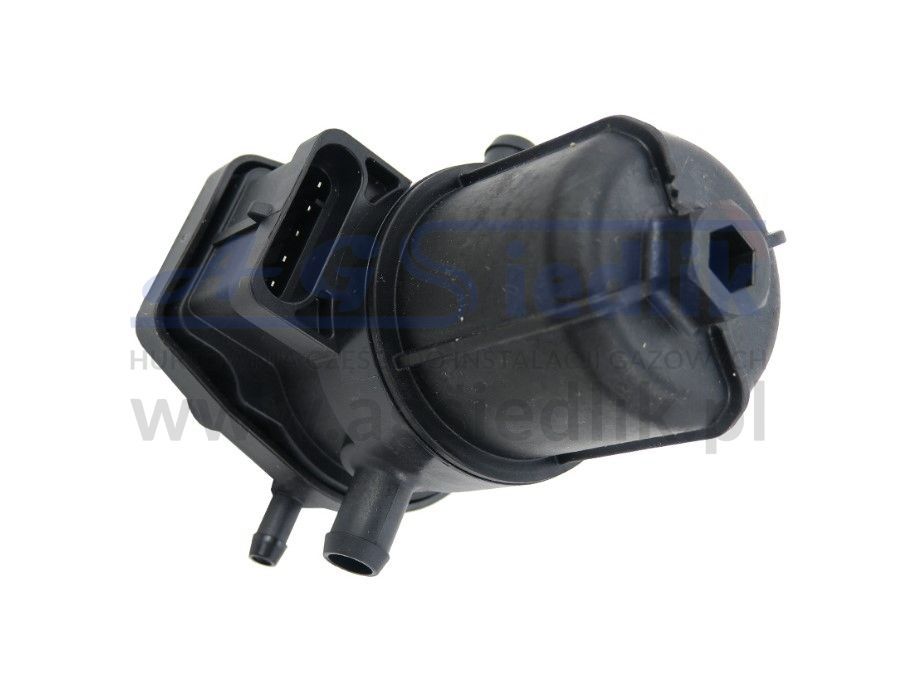

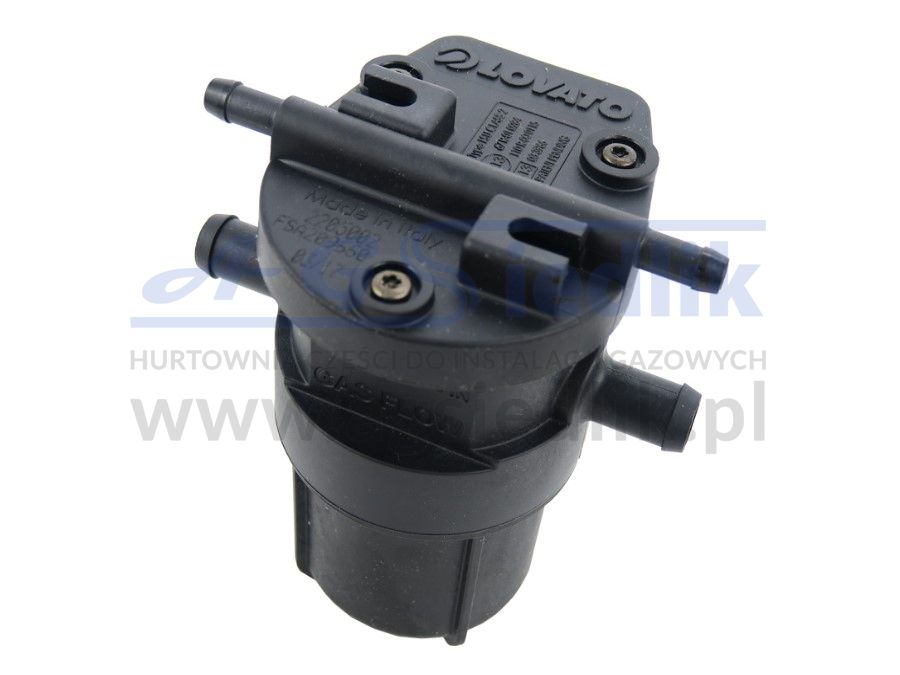

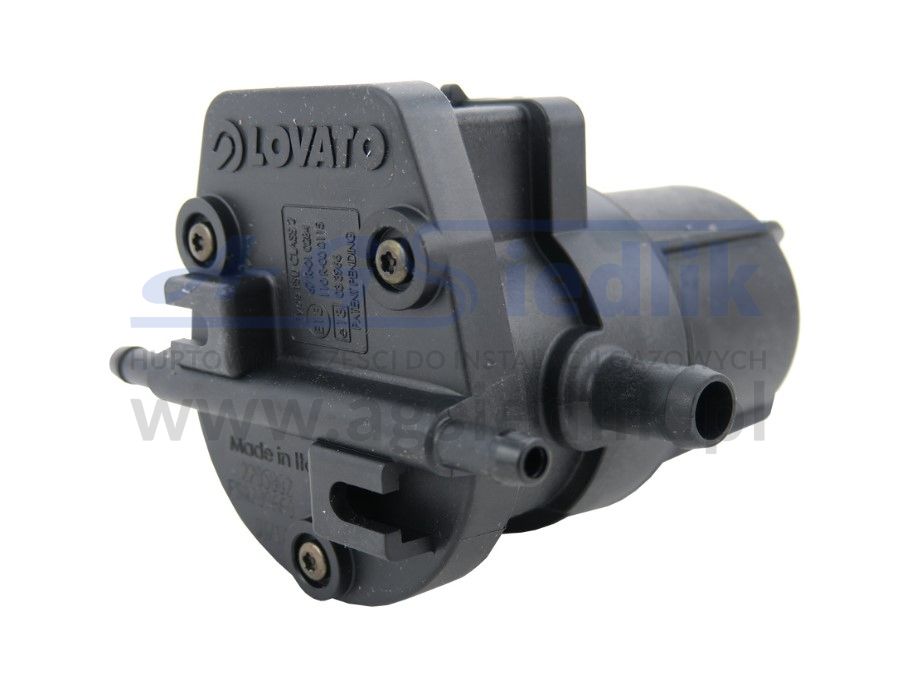

LOVATO FSU P-T-MAP vapor phase filter for sequential systems (with built-in MAP sensor and vacuum connection).
Technical Specifications:
-
Height: 110 mm
-
Filter diameter: Ø 55 mm
-
Filter base diameter: Ø 69 mm
-
LPG port diameter: Ø 12 mm
-
Vacuum port diameter: Ø 5 mm
-
Port orientation: 180°
-
Five-pin hermetic connector
-
Filter element material: polyester
Application
Vapor phase filter with a replaceable polyester insert, designed for use in sequential injection systems such as Exr, Smart, and FAST.
Installed directly after the reducer (vaporizer) and before the injector rail.
Its function is to protect the injector rail and engine from solid contaminants present in the gas, which could disrupt operation or damage the system.

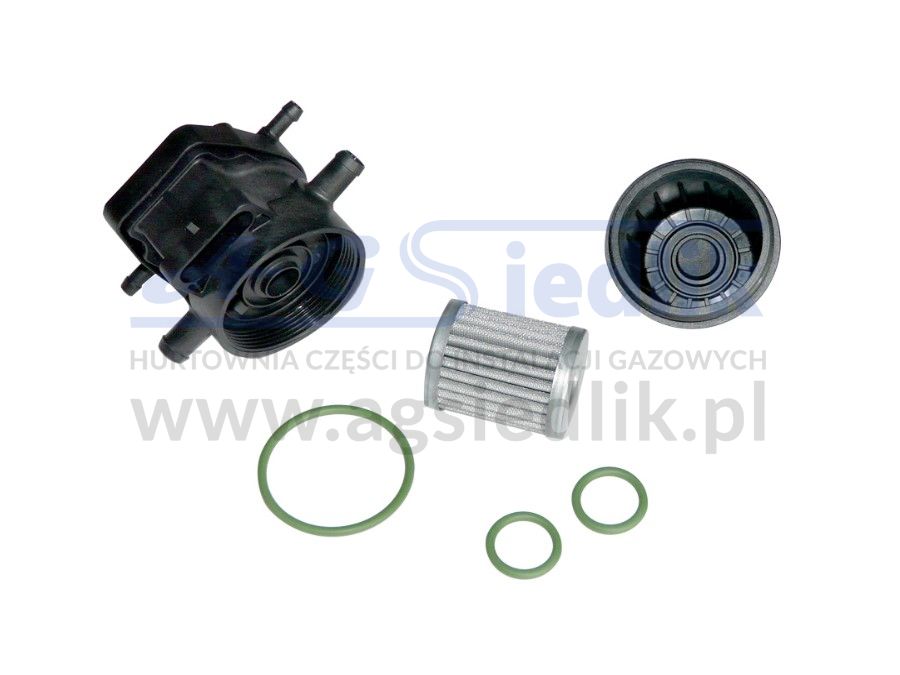

The filter contains a replaceable insert made of polyester filtering fiber.
Filter Element Replacement
It is recommended to replace the filter insert every 10,000 to 15,000 km.
Price applies to 1 unit of the product.
