TANK STAKO 45/315 length 667 type W11
+48 603 775 778
Product Description

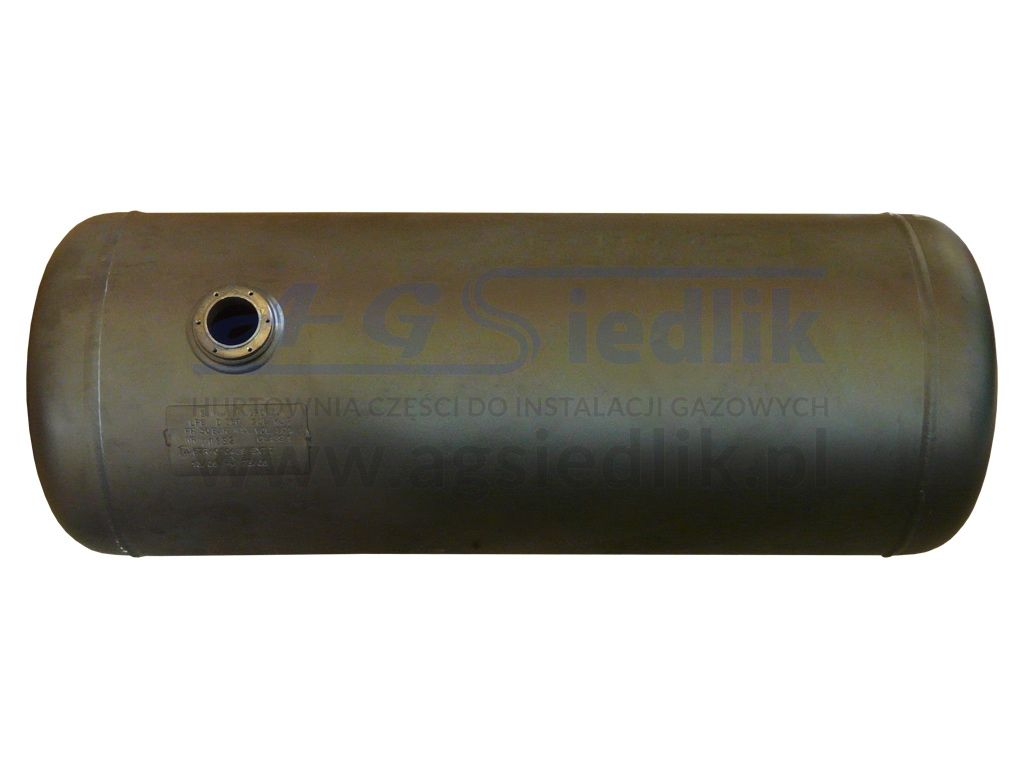

Cylindrical Tank ZC Type W11
Manufacturer: STAKO
Tank Size: 315/45

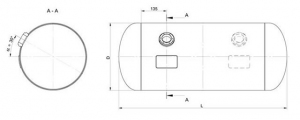

| Tank Type | Diameter D [mm] | Length L [mm] | Capacity V [L] | Max Fill (80%) [L] | Weight [kg] |
|---|---|---|---|---|---|
| ZC 315/45 | 315 | 667 | 45 | 36 | 19.3 |
Technical Specifications:
-
Mounting to the car body using a frame
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C to +65°C
-

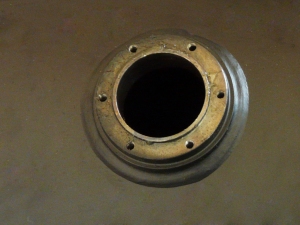

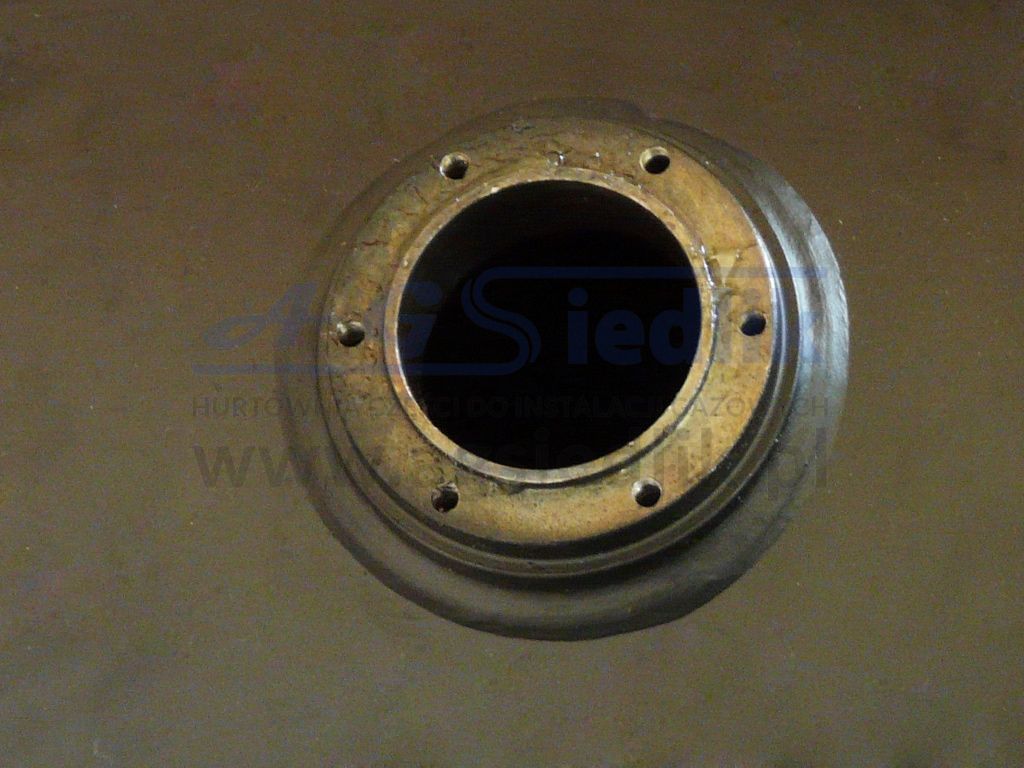

Multivalve mounting with 6 Allen screws M5×1.0
Compatible Multivalves:
-
TOMASETTO E4 67R 013018
-
LOVATO E4 67R 0194004
-
CEODEUX E13 67R 010013
-
CEODEUX E2 67R 0100013
-
EMER E3 67R 0158416
-
POLGAS E20 67R 010512
-
TARTARINI E8 67R 013018
-
TARTARINI E13 67R 010192
-
LANDI E13 67R 010129
-
LANDI RENZO E13 67R 010144
-
OMB E13 67R 010188
-
ROMANO E13 67R 010134
-
BRC EUROPA E13 67R 010004
Included in the Set:
-
Tank
-
Documentation (TDT homologation required at vehicle inspection stations)
Optional Accessories:
-
Frame
-
Multivalve 315/30 or 315/30 Extra
-
Multivalve 315/0 or 315/0 Extra
-
Multivalve 315/90 or 315/90 Extra
-
Multivalve gasket
-
Leak tester
-
Pipe connector Ø6 mm
-
Pipe connector Ø8 mm
The price refers to one unit of the product.
