TOMASETTO reducer AT10 moto evaporator

Product Description

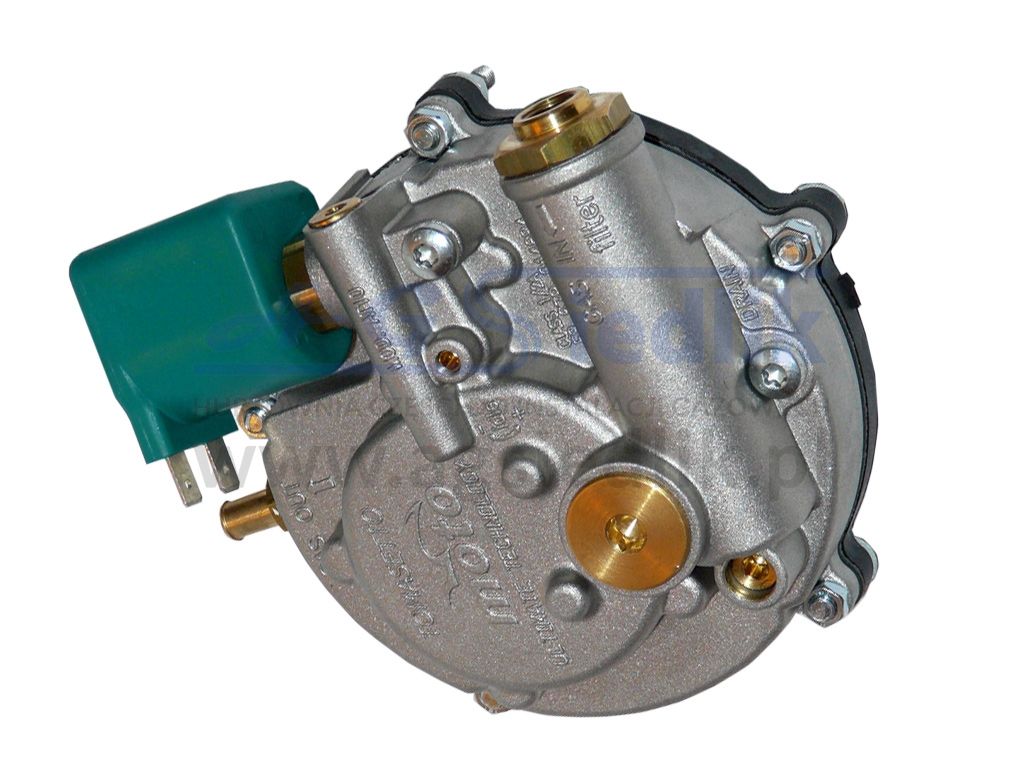

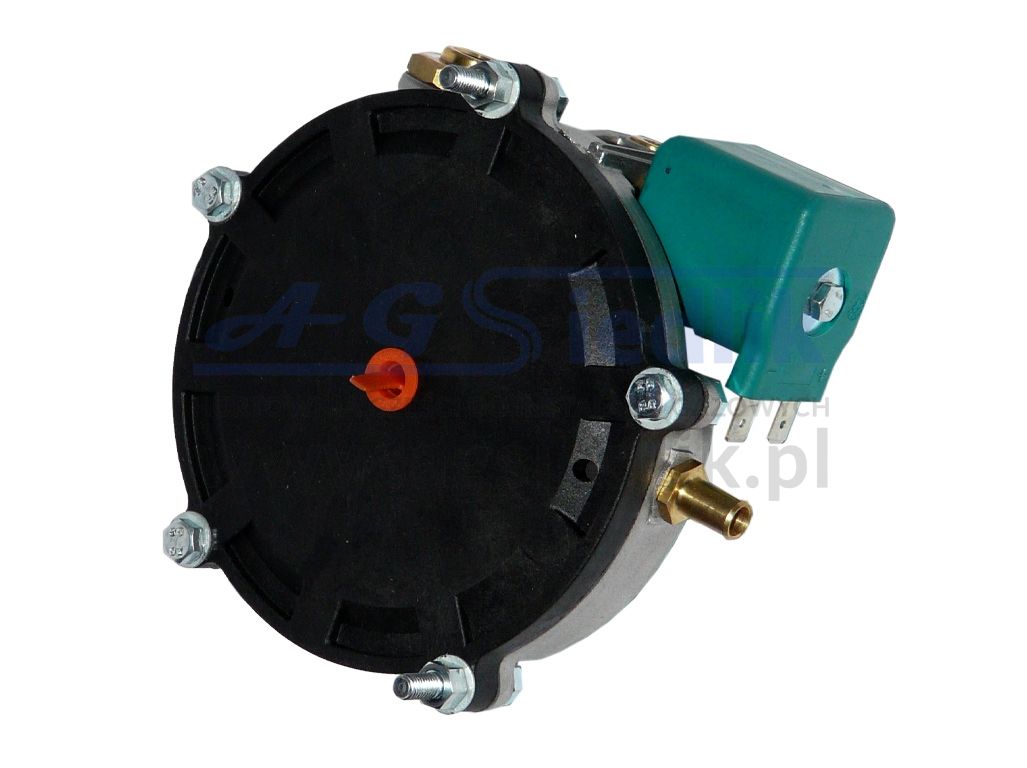

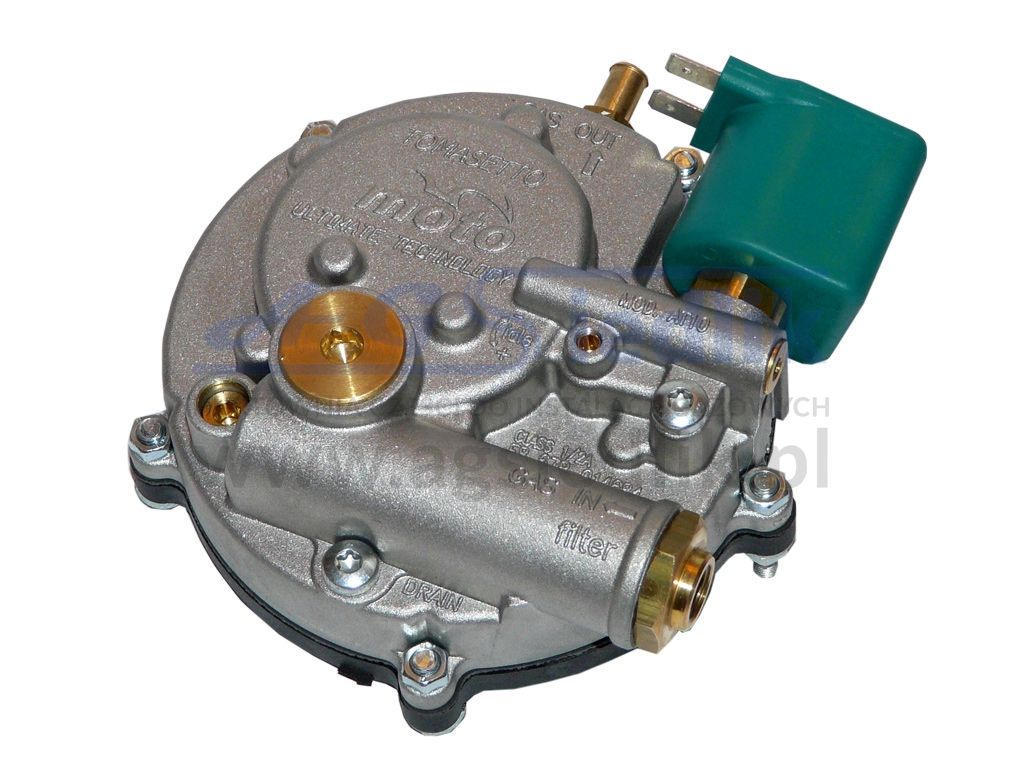

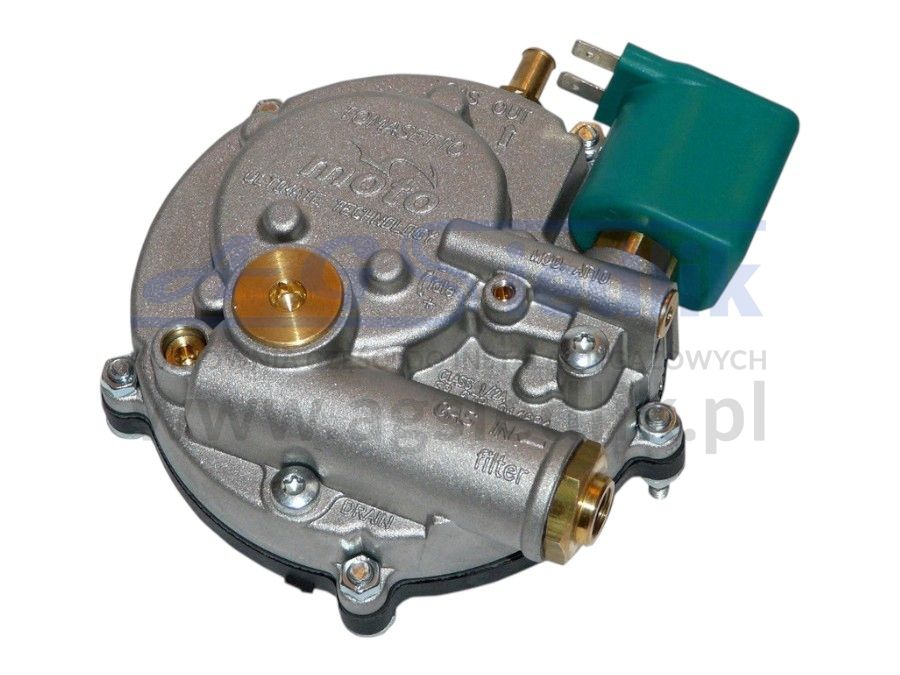

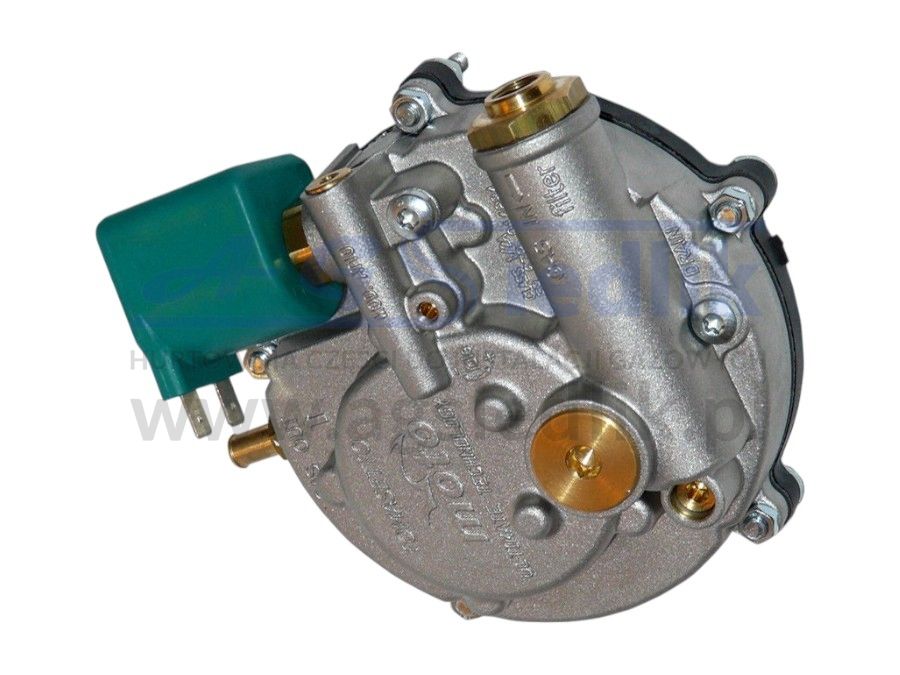

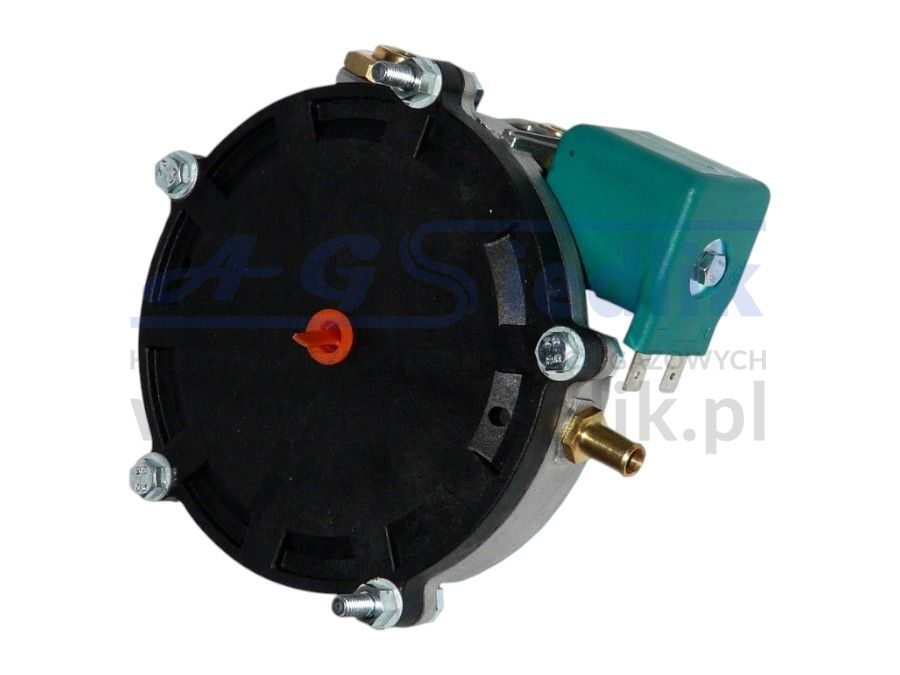

Tomasetto Moto AT10 LPG Regulator

Technical Specifications:

• Model: AT10 ELECTRONIC

• Product type: LPG gas regulator for small motorcycles and three-wheelers (vapor phase)

• Material: Cast aluminum body

• Weight: 0.65 kg

• Dimensions: 130 x 120 x 60 mm

• Inlet pressure: 3 MPa

• Coil voltage: 12 V DC

• Coil power: 3 W

• Coil connector type: AMP

• Copper pipe fitting: M10x1 for 6 mm pipe

• Gas outlet diameter: Ø 8 mm

• Engine power (max): up to 15 kW / 20 HP

• Gas flow capacity: 4 kg/h

• Operating temperature range: -20°C to +120°C

Note:

At temperatures below -10°C, the regulator's performance may decrease.
With consistently higher ambient temperatures, this regulator can also support engines with higher output.

This regulator is specifically designed for installation in motorcycles with air-cooled engines.

We also recommend checking out other LPG regulator models in our product range.

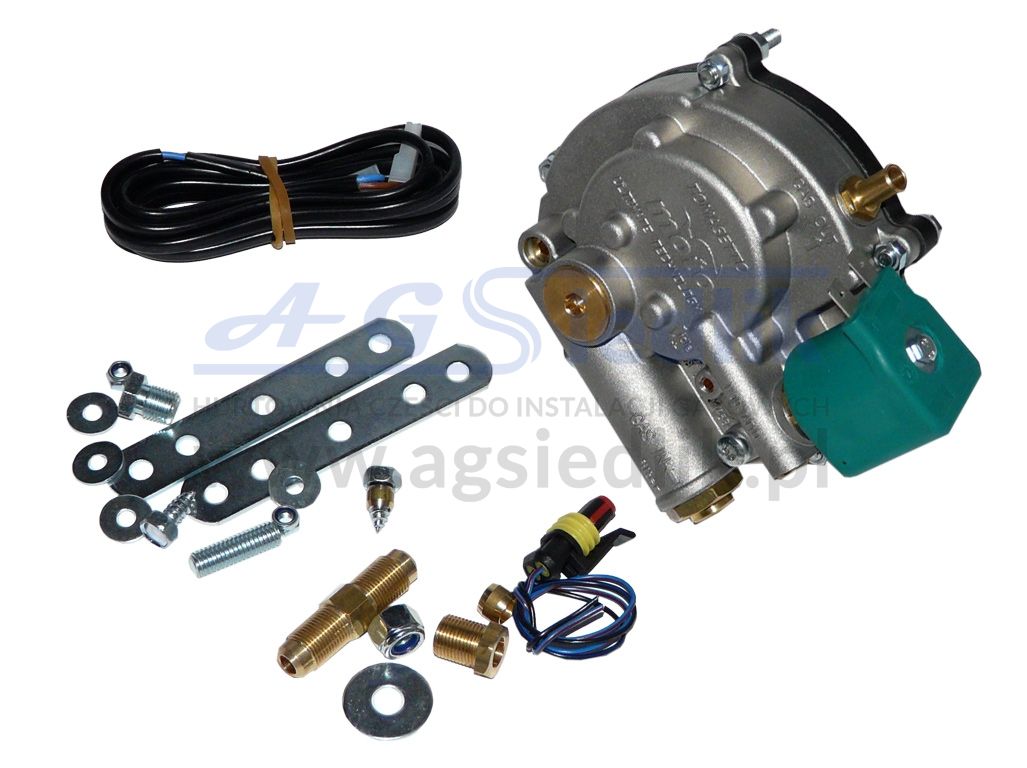

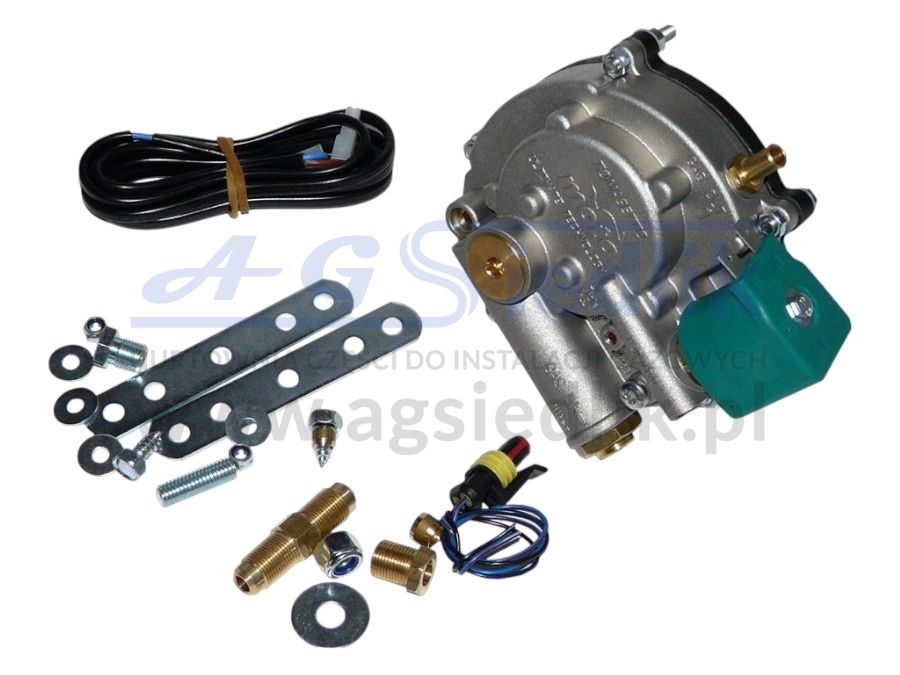

Price is for the complete set.
