ZTP STAKO 720/300 - 102L external tank full type F11L
| Producer: | STAKO |
| Code: | F11L |
| Manufacturer code: | F72010211L |
| Homologation: | E20-67R-010901 |
| Date of production: | 2022r |
| Availability: |
not available from the producer
|
Product Description

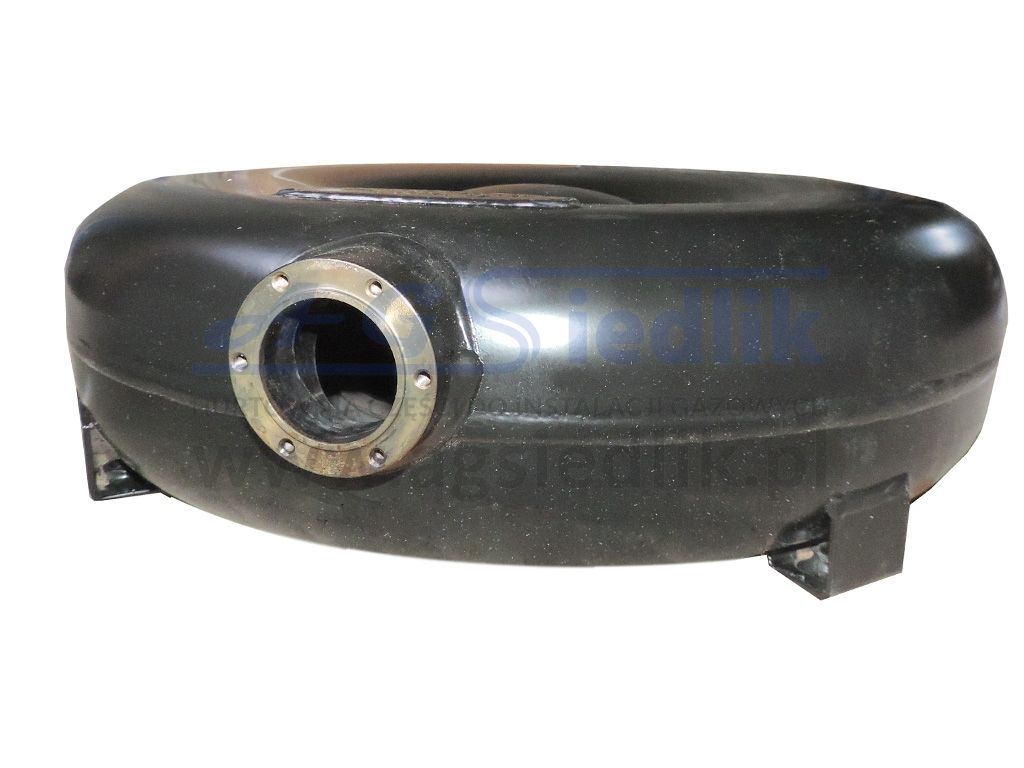

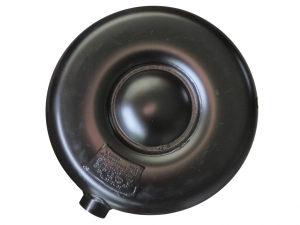

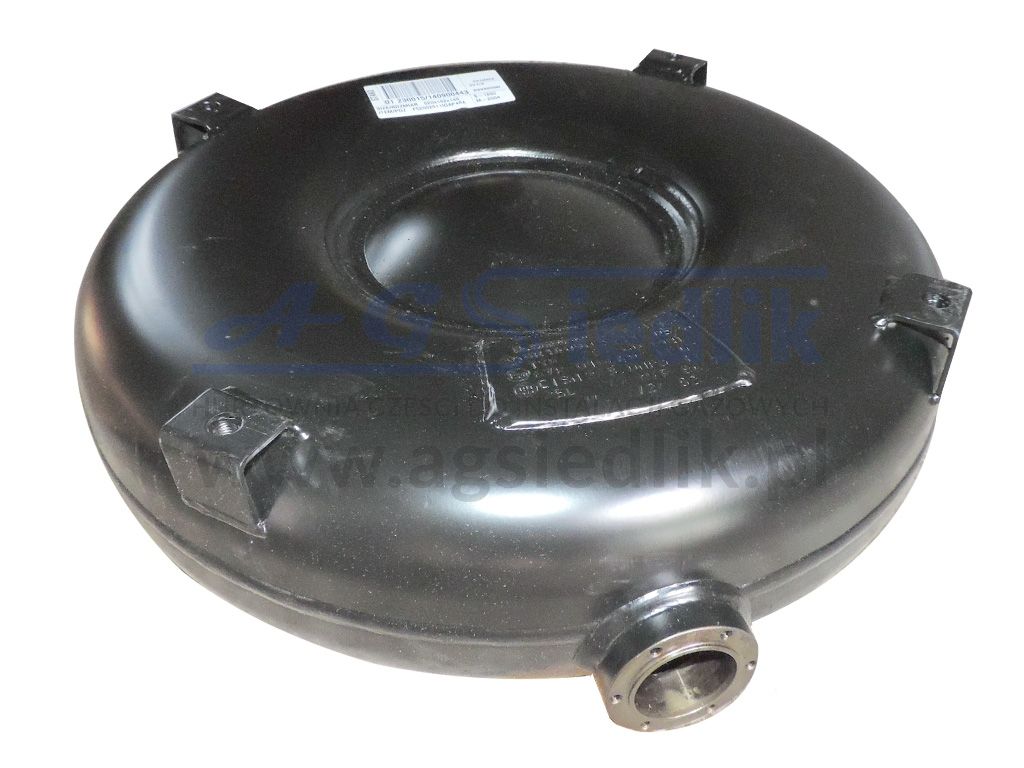

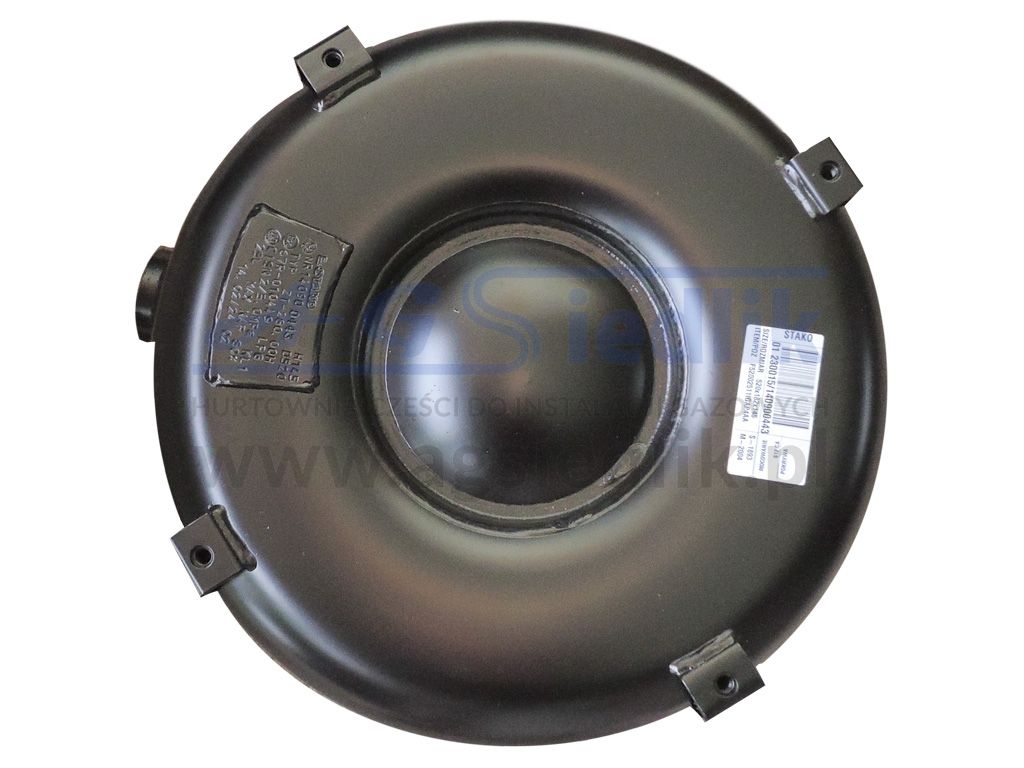

External Full Toroidal Tank ZTP (replaces the spare wheel under the vehicle – increased capacity version)
Manufacturer: STAKO
Size:
720/300 – 102L
| Tank Type | Diameter D [mm] | Height H [mm] | Capacity V [L] | Allowable Fill 80% [L] | Weight [kg] |
|---|---|---|---|---|---|
| F11L / ZTP 720/300 | 720 | 300 | 102 | 81.6 | 45 |
Technical Specifications:
-
Installation type: external / internal
-
Mounted to the vehicle body with four support brackets
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C to +65°C
-

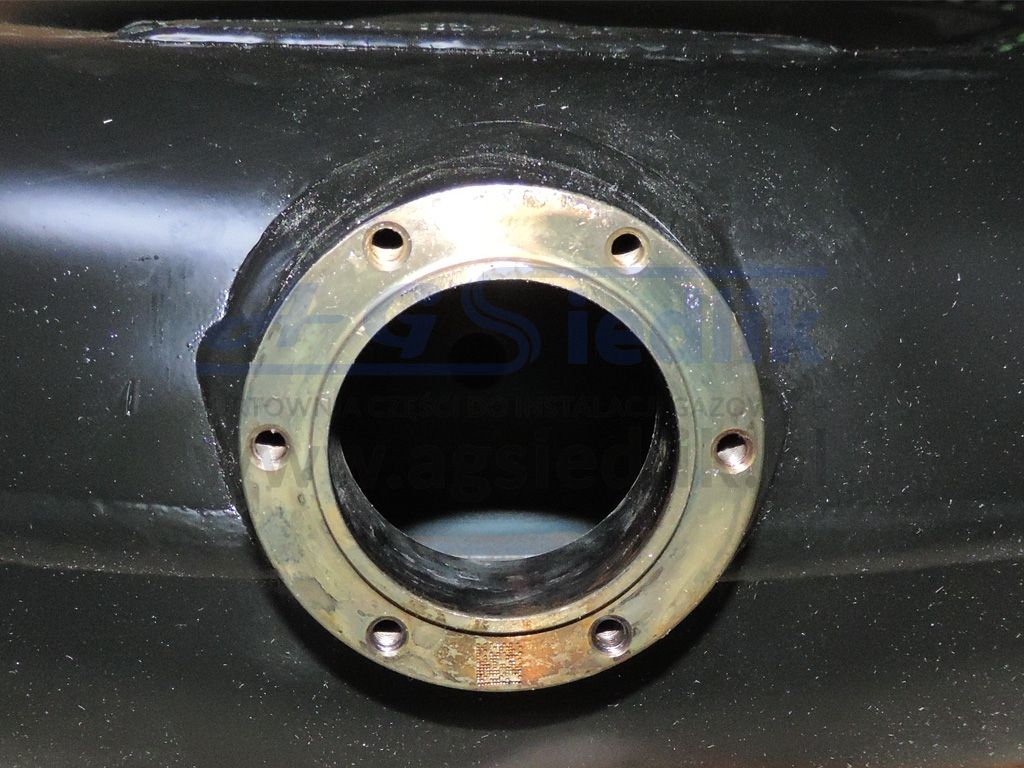

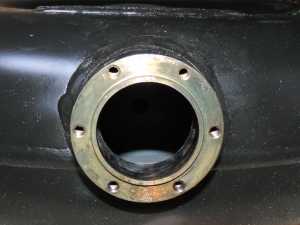

Multivalve mounting: 6 Allen screws M5x1.0
Compatible Multivalves:
-
Tomasetto E8 67R-01 3018
-
Lovato E4 67R-01 94004
-
OMB E13 67R-01 0188
-
BRC E13 67R-01 0004
-
Emer E3 67R-01 58416
-
Tartarini E8 67R-01 3018
-
Tartarini E8 67R-01 0192
-
Polgas E20 67R-01 0512
-
Landi Renzo E13 67R-01 0144
-
Landi E13 67R-01 0129
-
Vialle E4 67R-01 0223
-
Vialle E4 67R-01 0031
-
Ceodeux E2 67R-01 0031
-
Ceodeux E2 67R-01 0013
Set Includes:
-
Tank
-
Documentation (TDT homologation required for inspection stations)
Additional Products Available in Accessories:
-
Multivalve 300/0
-
Multivalve 300/0 Extra
-
Multivalve gasket
-
Leak tester
-
Barrel connector Ø6
-
Barrel connector Ø8
The price applies to 1 unit of the product.
