ZTW STAKO 650/220 - 56L internal tank type T12 UltraSlim
| Producer: | STAKO |
| Code: | T12 UltraSlim |
| Manufacturer code: | T65005612 |
| Homologation: | E20 67R-031076 E20 67R-010324 obudowa |
| Date of production: | 2025r. |
| Availability: |
not available from the producer
|
Product Description

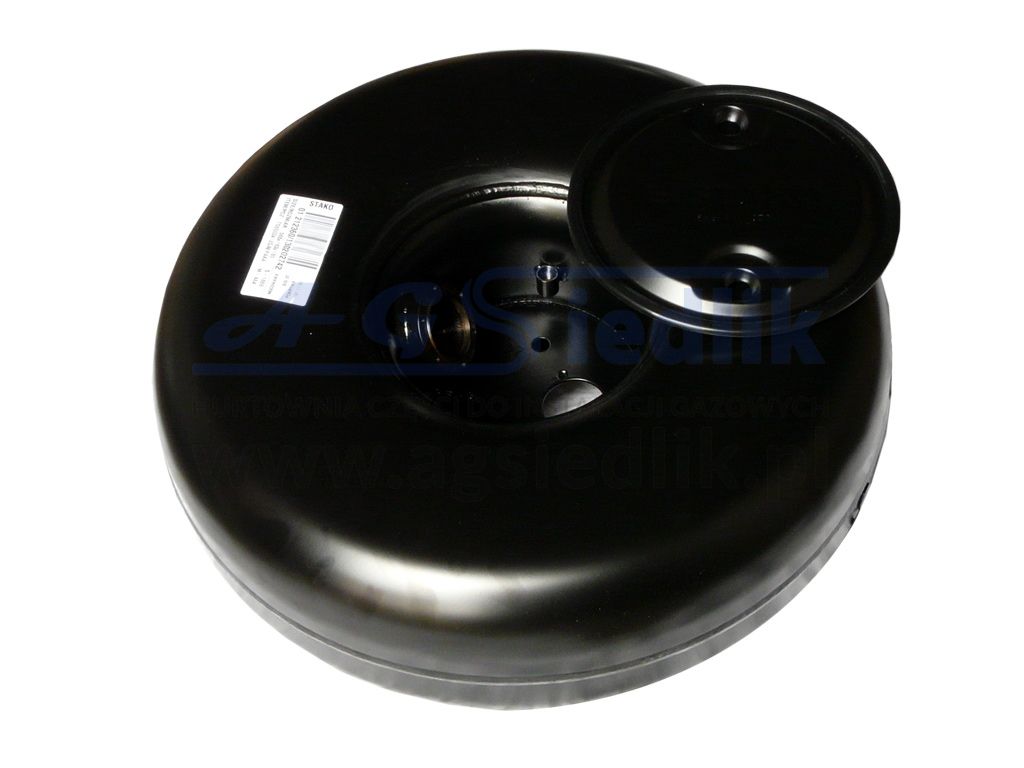

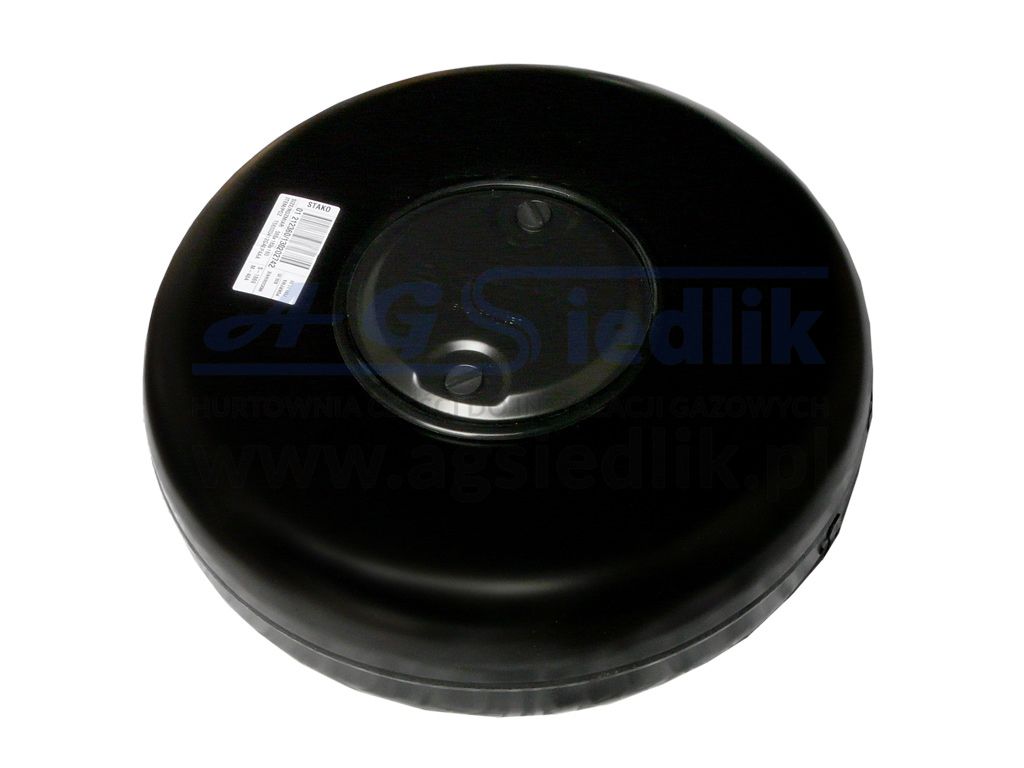

Internal Toroidal Tank ZTW (Spare Wheel Replacement Inside the Vehicle)
Manufacturer: STAKO
Size: 650/220-56L
Tank Specifications:
| Tank Type | Diameter D [mm] | Height H [mm] | Capacity V [L] | Allowable Fill 80% [L] | Weight [kg] |
|---|---|---|---|---|---|
| T12 UltraSlim / ZTW 650/220 | 650 | 220 | 56 | 44.8 | 21.2 |
Technical Data:
-
Mounting Type: Internal
-
Mounting to the body with 2 screws
-
Test Pressure: 30 bar / 3.0 MPa
-
Working Pressure: 20 bar / 2.0 MPa
-
Operating Temperature: -20°C ÷ 65°C
-

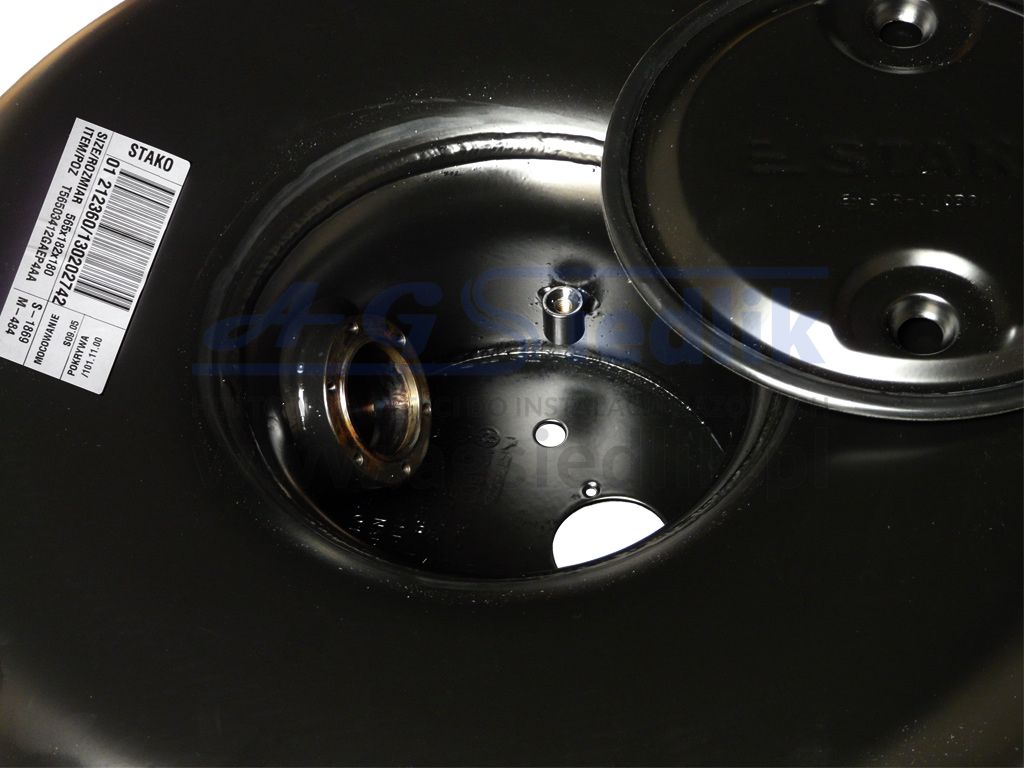

Multivalve Mounting Type: 30° Head
-
Multivalve Mounting: 6 M5x1.0 Hex Screws
Compatible Multivalves:
-
Tomasetto E8 67R-01 3018
-
Lovato E4 67R-01 94004
-
OMB E13 67R-01 0188
-
BRC E13 67R-01 0004
-
Emer E3 67R-01 58416
-
Tartarini E8 67R-01 3018
-
Tartarini E8 67R-01 0192
-
Polgas E20 67R-01 0512
-
Landi Renzo E13 67R-01 0144
-
Landi E13 67R-01 0129
-
Vialle E4 67R-01 0223
-
Vialle E4 67R-01 0031
-
Ceodeux E2 67R-01 0031
-
Ceodeux E2 67R-01 0013
Included in the Kit:
-
Tank
-
Documentation (TDT Approval Required at Diagnostic Stations)
Additional Products Available in Accessories:
-
Multivalve 220/30
-
Multivalve 220/30 Extra
-
Multivalve Gasket
-
Leak Tester
-
Barrel Connector Ø6
-
Barrel Connector Ø8
The price applies to 1 unit of the product.
