ZTZ BORMECH 520/180 - 28.5L External Tank – without mounting frame
| Producer: | BORMECH |
| Code: | BORMECH T18S |
| Manufacturer code: | ZTZ T18S 520 28,5 180 |
| Homologation: | E20 67R 04 1205 |
| Date of production: | 2025r. |
| Availability: |
on request
|
Product Description

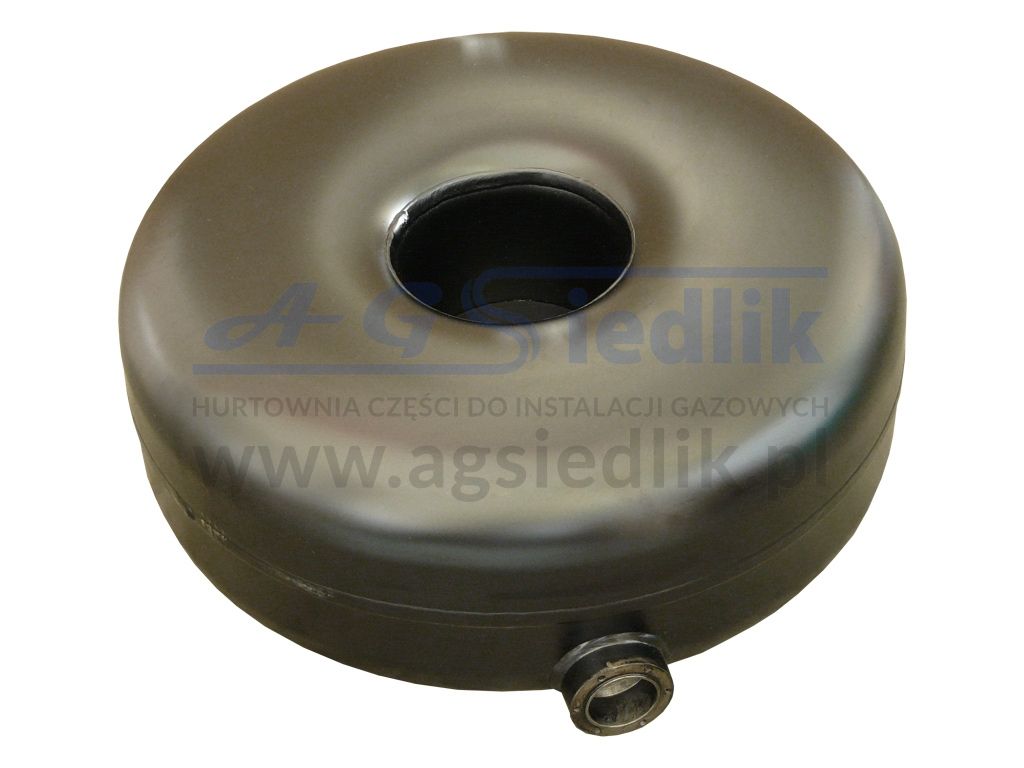

ZTZ BORMECH 520/180 - 28.5L External Toroidal Tank (to replace the spare wheel on the outside of the vehicle)
Manufacturer: BORMECH
Size: 520/180 - 28.5L
Tank Type
| Diameter D [mm] | Height H [mm] | Capacity V [l] | Max Fillable Capacity 80% [l] | Weight [kg] |
|---|---|---|---|---|
| 520 | 180 | 28.5 | 22.8 | 15 |
Technical Data:
-
Mounting type: External
-
Nameplate: Positioned at the bottom
-
Mounting: 2x holes in the plate
-

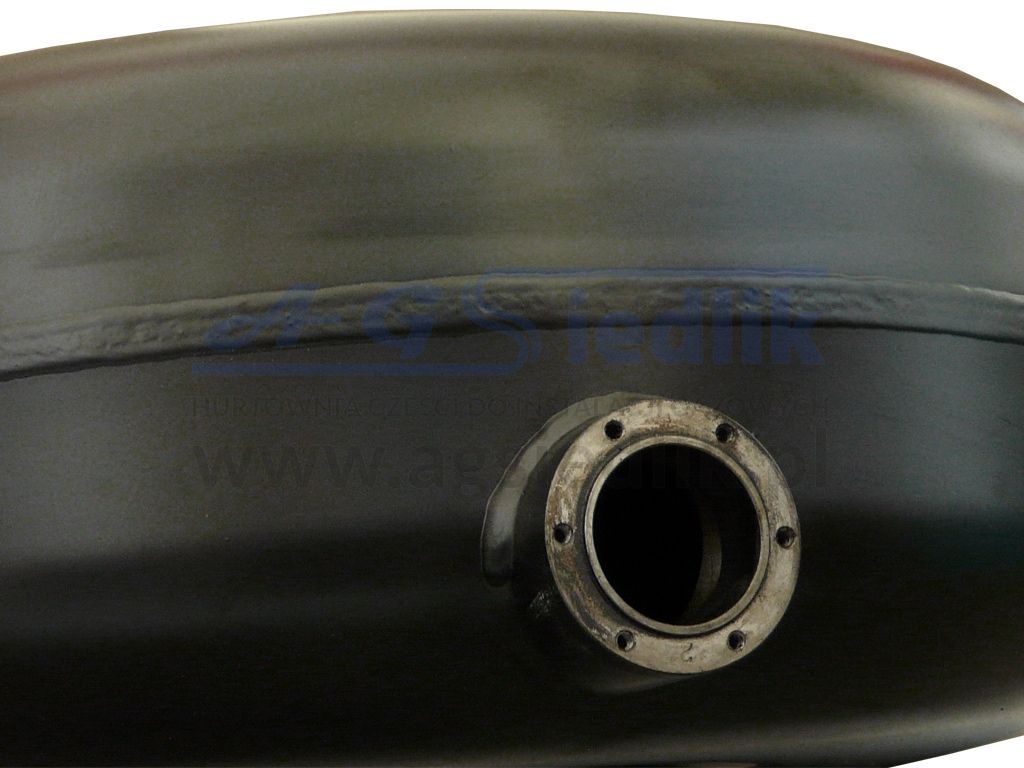

Toroidal tank for multi-valve with external connector (ZTZ type)
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C ÷ 65°C
-
Multi-valve mounting: 6 M5x1.0 hex screws
Included in the Set:
-
Tank
-
Mounting accessories: screws, washers, nuts
-
Documentation (TDT homologation required at diagnostic stations, valid for 10 years from the production date of the tank)
Additional Mounting/Replacement Accessories:
-
Available here, click.
Price refers to 1 unit of the product.
