ZTZ BORMECH 565/180 - 34L external tank - without frame
+48 603 775 778
Product Description

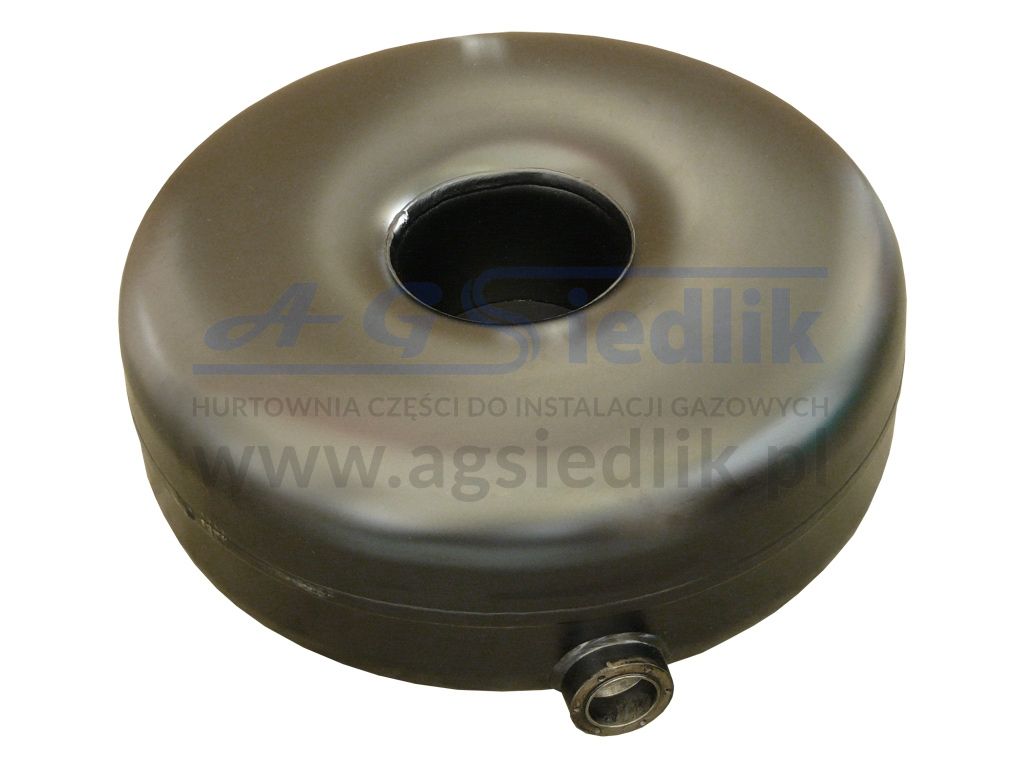

External Toroidal Tank ZTZ (for replacement of the spare wheel on the outside of the vehicle)
Manufacturer: BORMECH
Size: 565/180 - 34L
Tank Type:
| Type | Diameter D [mm] | Height H [mm] | Capacity V [l] | Maximum Fill 80% [l] | Weight [kg] |
|---|---|---|---|---|---|
| E20 67R-03 1105 | 565 | 180 | 34 | 27.2 | 17 |
Technical Specifications:
-
Mounting method: External
-
Nameplate: Located at the bottom
-
Mounting: 2x holes in the plate
-
Toroidal tanks for multivalve with external nozzle (ZTZ type)
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C ÷ 65°C
-
Multivalve mounting: 6 M5x1.0 Allen screws
Included in the set:
-
Tank
-
Mounting accessories: Screws, Washers, Nuts
-
Documentation (TDT homologation required for diagnostic stations, 10 years from the tank production date)
Additional accessories for mounting/replacing the tank:
Available here, click [link]
The price refers to 1 unit of the product.
