ZTZ BORMECH 650/270 – 72L external tank (2026) – without mounting frame
| Producer: | BORMECH |
| Code: | BORMECH T10E |
| Manufacturer code: | ZTZ-T10D 650 72 270 |
| Homologation: | E20 67R 03 1128 |
| Date of production: | 2026r. |
| Availability: |
available
|
| Delivery costs: |
Shipping costs:Pick-up from the warehouse (Skrzyszów, Poland) (prepayment): 5.00 zł Kurier InPost (prepayment): 48.00 zł DPD delivery (prepayment): 48.00 zł from 48,00 zł |
+48 603 775 778
Product Description

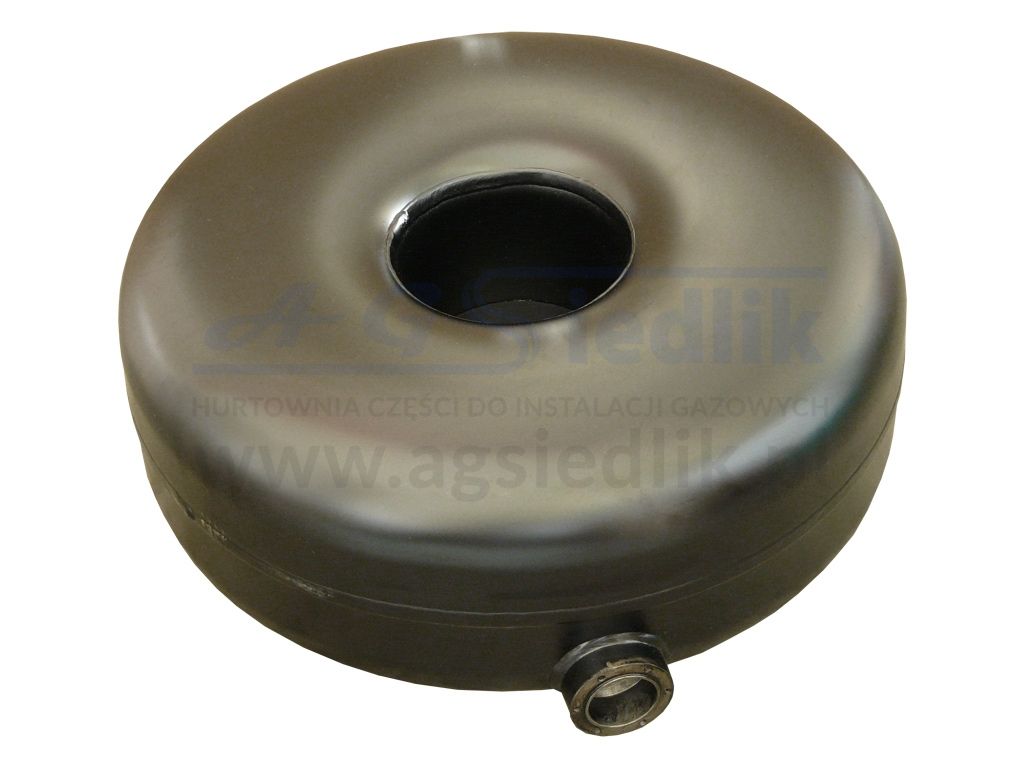

External toroidal tank ZTZ (installed outside the vehicle, in place of the spare wheel).
Manufacturer: BORMECH
Size:
650/270 – 72L
| Tank Type | Diameter D [mm] | Height H [mm] | Capacity V [L] | Permissible Fill 80% [L] | Weight [kg] |
|---|---|---|---|---|---|
| T9B 650 59 230 | 650 | 230 | 59 | 47.2 | 23 |
Technical Specifications:
-
Installation method – external
-
Nameplate – located on the bottom
-
Mounting – 2 holes in the base plate
-

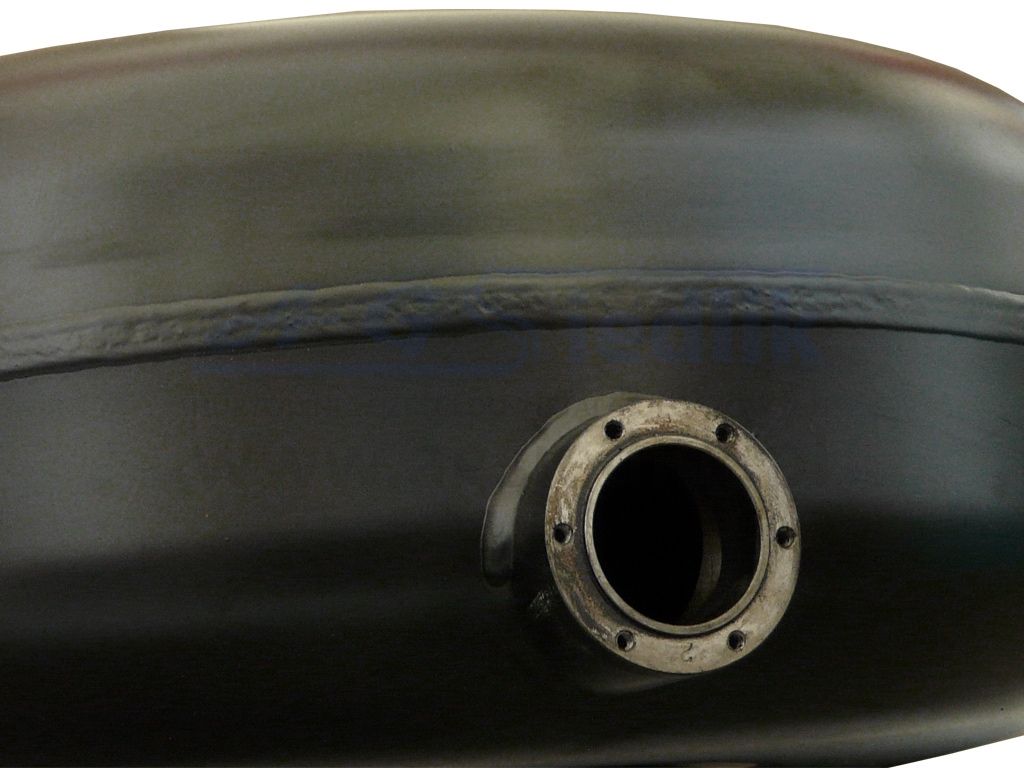

Multivalve installation on the outer circumference with an external neck (ZTZ type)
-
Multivalve fastening with 6 M5x1.0 hex socket screws
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C to +65°C
Compatible Multivalves:
-
Tomasetto E8 67R-01 3018
-
Lovato E4 67R-01 94004
-
OMB E13 67R-01 0188
-
BRC E13 67R-01 0004
-
Emer E3 67R-01 58416
-
Tartarini E8 67R-01 3018
-
Tartarini E8 67R-01 0192
-
Polgas E20 67R-01 0512
-
Landi Renzo E13 67R-01 0144
-
Landi E13 67R-01 0129
-
Vialle E4 67R-01 0223
-
Vialle E4 67R-01 0031
-
Ceodeux E2 67R-01 0031
-
Ceodeux E2 67R-01 0013
Kit Includes:
-
Tank
-
Documentation (TDT approval required at inspection stations)
-
Bolts
Additional Accessories Available:
-
Multivalve 270/0
-
Multivalve 270/0 Extra
-
Multivalve gasket
-
Leak tester
-
Ferrule Ø6
-
Ferrule Ø8
We encourage you to check other models of external toroidal tanks.
