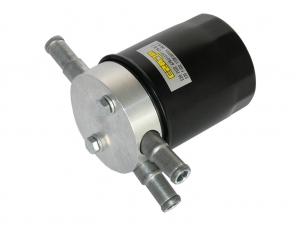

CZAJA FL02 vapor-phase filter + P2-2 filter base, 12/2x12 version

Product Description

CZAJA FL02 vapor-phase filter + P2-2 filter base, 12/2x12 version.

Filter Technical Specifications

The filter has the following dimensions and parameters:

• Filter housing diameter – Ø 66 mm

• Height – 78 mm

• Internal thread – 20x2 mm

• Seal – O-ring 18.5 × 4 mm

• Rubber element – 55 mm × 4 mm × 6 mm

• Pre-filter element – filter paper 347/20 VH 134 (effective filtration area: 0.03 m²)

• Fine filter element – filter paper 843 VH 134 (effective filtration area: 0.032 m²)

• Permeability of 347/20 VH 134 paper – 840 l/m²/s

• Permeability of 843 VH 134 paper – 300 l/m²/s

• Application – LPG / CNG

Base Technical Specifications

The filter base has the following dimensions:

• Base diameter – 64 mm

• Overall length with fittings – 120 mm

• Filter thread diameter – M20 × 1.5 mm

• Fitting diameter (gas inlet) – Ø 12 mm

• Fitting diameter (gas outlet) – Ø 12 mm (2 × 12 mm)

• Gas passage diameter – Ø 7 mm

• Material – aluminum

• Gas flow direction indicated on the housing

Application Description

• The filter is recommended to be replaced approximately every 15,000 km, but not less frequently than once per year.

• Installed between the reducer and the injector rails.

The price is for 1 unit.
