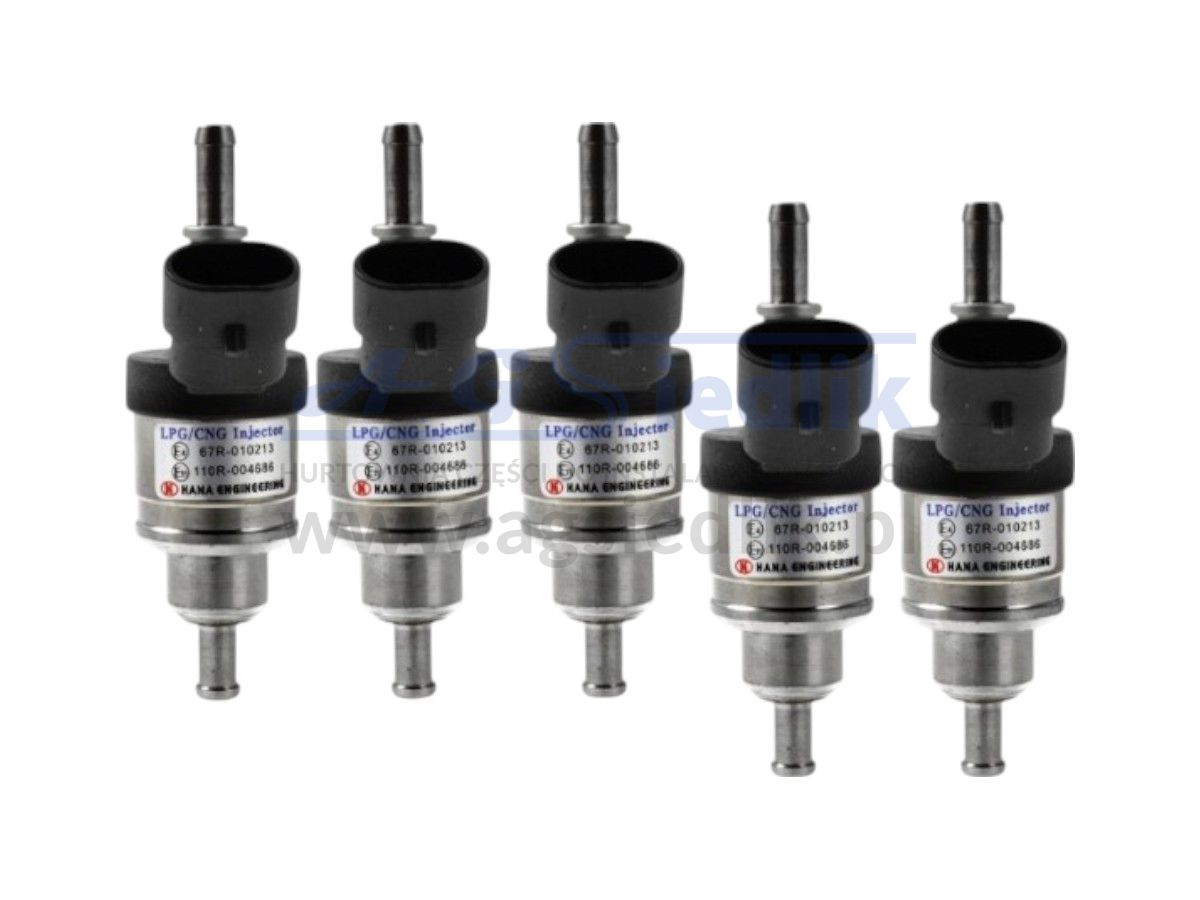

HANA H2001 Type A+ (Blue) 40–60 HP Wired (Set of 5)
380,00 zł
308,94 zł Excl. VAT
Shopping without registration You do not need to register to place an order
Order by phone+48 603 775 778
Product Description
HANA H2001 Type A+ (Blue) 40–60 HP Wired (Set of 5)
Injector Technical Specifications:
-
Output: 42–60 HP per cylinder
-
Coil resistance: 1.3 Ω
-
Supply voltage: 12 V DC
-
Opening time: 2.36 ms
-
Closing time: 1.2 ms
-
Maximum operating pressure: 4.0 bar
-
Recommended operating pressure: 1.2 bar
-
Outer diameter of inlet fitting: 12 mm
-
Outer diameter of outlet fittings: 6 mm
-
Connector type: Superseal
-
Operating temperature range: -40°C to +120°C
-
Installation requires 2-cylinder and 3-cylinder distributors (available here)
Application Description
HANA H2001 injector application details:
| Model | HANA Type | Nozzle Type | Resistance | Power Range (HP) per Cylinder (±15%) | Operating Pressure (bar) |
|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | - | 1.3 Ω | 40 / 50 / 60 HP | 0.8 / 1.0 / 1.2 |
| 4 Cylinder: 160–240 HP | |||||
| 6 Cylinder: 240–360 HP | |||||
| 8 Cylinder: 320–480 HP | |||||
| Type A (Gold) | Type A (Green) | - | 1.9 Ω | 33 / 42 / 50 HP | |
| Type B (Red) | 2.4 mm Single Stripe | 1.9 Ω | 26 / 32 / 39 HP | ||
| Type C (Black) | 2.1 mm Double Stripe | 1.9 Ω | 20 / 25 / 30 HP | ||
| Type D (Purple) | 1.9 mm Triple Stripe | 1.9 Ω | 15 / 19 / 24 HP |
Explore other single-cylinder injector models.
Price applies to a set of 5 injectors.
