HANA H2001 Type (Gold) 15–50 HP Wired (Set of 3)
+48 603 775 778
Product Description

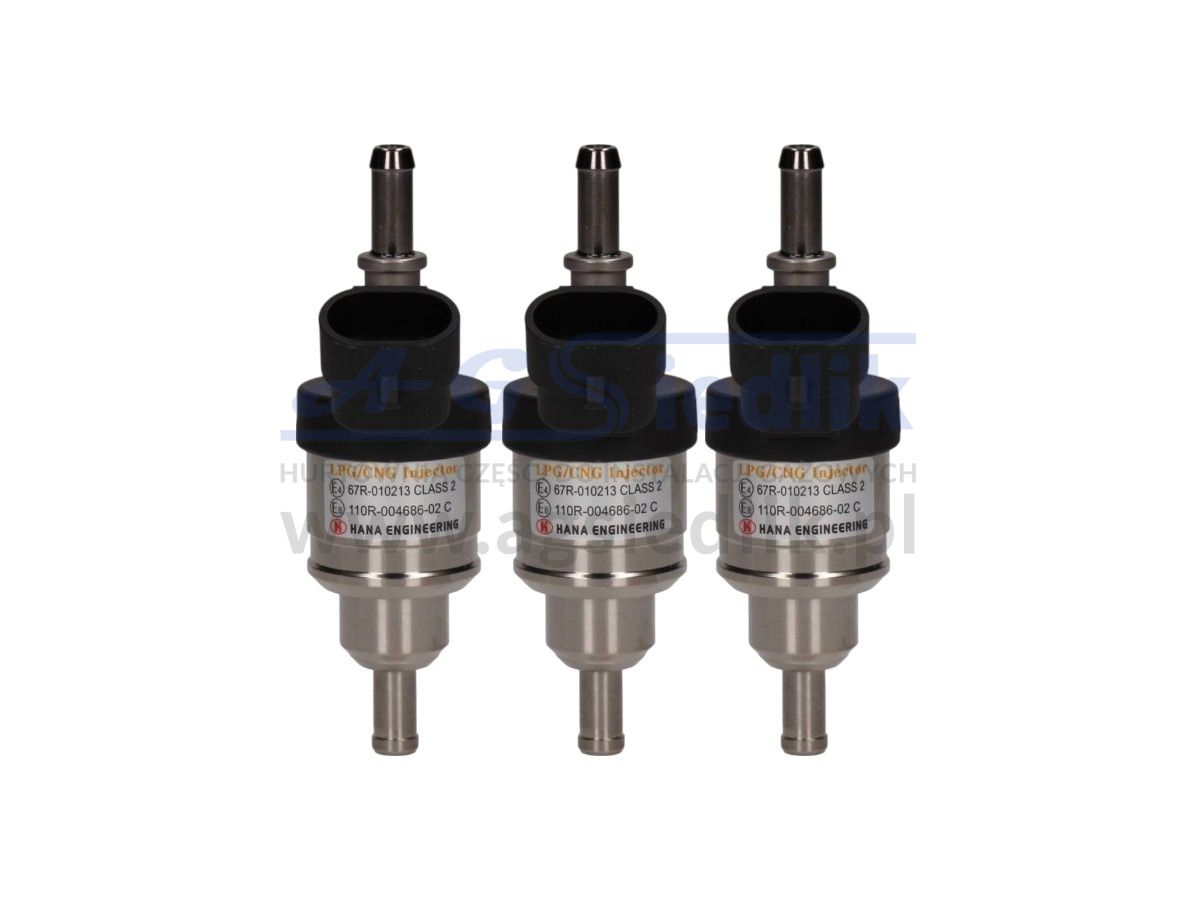

HANA H2001 Type (Gold) 15–50 HP per Cylinder – Wired (Set of 3)
Technical Specifications:
-
Output: 33–47 HP per cylinder
-
Coil resistance: 1.9 Ohm
-
Supply voltage: 12 V DC
-
Opening time: 2.36 ms
-
Closing time: 1.2 ms
-
Max operating pressure: 4.0 bar
-
Recommended working pressure: 1.2 bar
-
Inlet pipe outer diameter: 12 mm
-
Outlet pipe outer diameter: 6 mm
-
Connector type: Superseal
-
Operating temperature range: –40°C to +120°C
-
Gold type is calibrated with a nozzle (not included in the set)
-
Requires a 3-cylinder rail for installation
Application Overview:
| Model | Injector Type | Nozzle Type | Resistance | Power per Cylinder (±15%) | 4 Cylinders | 6 Cylinders | 8 Cylinders | Operating Pressure |
|---|---|---|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | – | 1.3 Ω | 40 / 50 / 60 HP | 160–240 HP | 240–360 HP | 320–480 HP | 0.8 / 1.0 / 1.2 bar |
| Type A (Gold) | Type A (Green) | – | 1.9 Ω | 33 / 42 / 50 HP | 132–200 HP | 198–300 HP | 264–400 HP | 1.0–1.2 bar |
| Type B (Red) | 2.4 mm – One Stripe | 1.9 Ω | 26 / 32 / 39 HP | 104–156 HP | 156–234 HP | 208–312 HP | – | |
| Type C (Black) | 2.1 mm – Two Stripes | 1.9 Ω | 20 / 25 / 30 HP | 80–120 HP | 120–180 HP | 160–240 HP | ||
| Type D (Purple) | 1.9 mm – Three Stripes | 1.9 Ω | 15 / 19 / 24 HP | 60–96 HP | 90–144 HP | 120–192 HP |
Price includes 3 injectors.
