ZTZ BORMECH 520/180 – 28.5L External Tank + Mounting Frame
| Producer: | BORMECH |
| Code: | BORMECH T18S |
| Manufacturer code: | ZTZ T18S 520 28,5 180 |
| Homologation: | E20 67R 04 1205 |
| Date of production: | 2025r. |
| Availability: |
on request
|

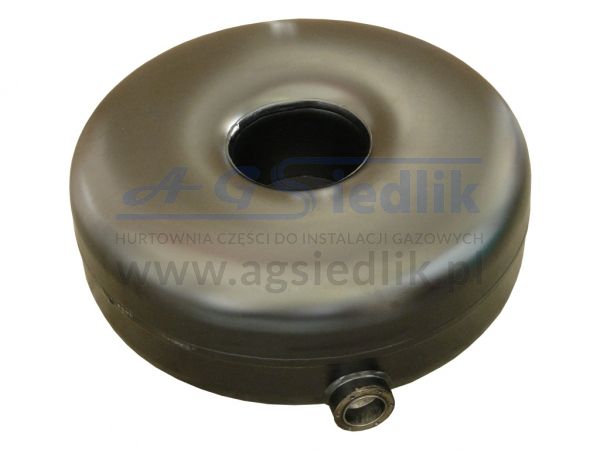

External Toroidal Tank ZTZ
(Designed to replace the spare wheel outside the vehicle)
Manufacturer: BORMECH
Size: 520/180 – 28.5L
| Tank Type | Diameter D [mm] | Height H [mm] | Capacity V [l] | Permissible 80% Filling [l] | Weight [kg] |
|---|---|---|---|---|---|
| ZTZ T18S | 520 | 180 | 28.5 | 22.8 | 15 |
Technical Specifications:
-
Mounting method: External
-
Nameplate location: Bottom
-
Installation: 2 holes in the plate or 2 support straps
-

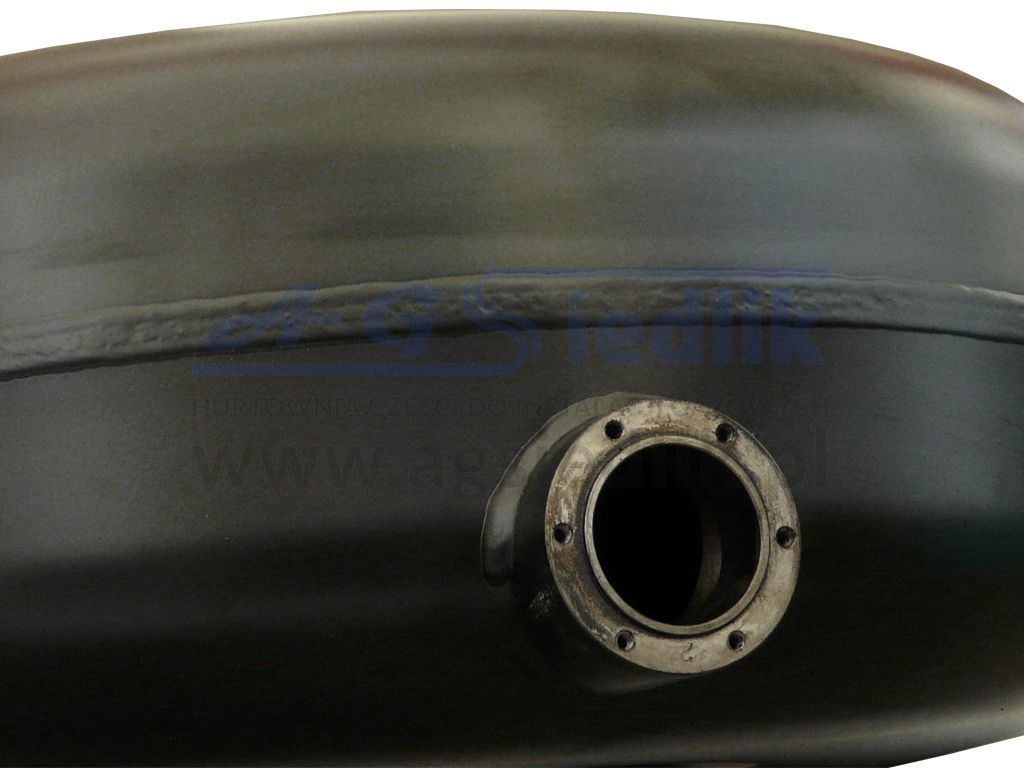

Multivalve mounting on the external circumference with external connection (ZTZ type)
-
Multivalve mounted with 6 M5x1.0 hex screws
-
Test pressure: 30 bar / 3.0 MPa
-
Working pressure: 20 bar / 2.0 MPa
-
Operating temperature: -20°C to +65°C
Included in the set:
-
Tank
-

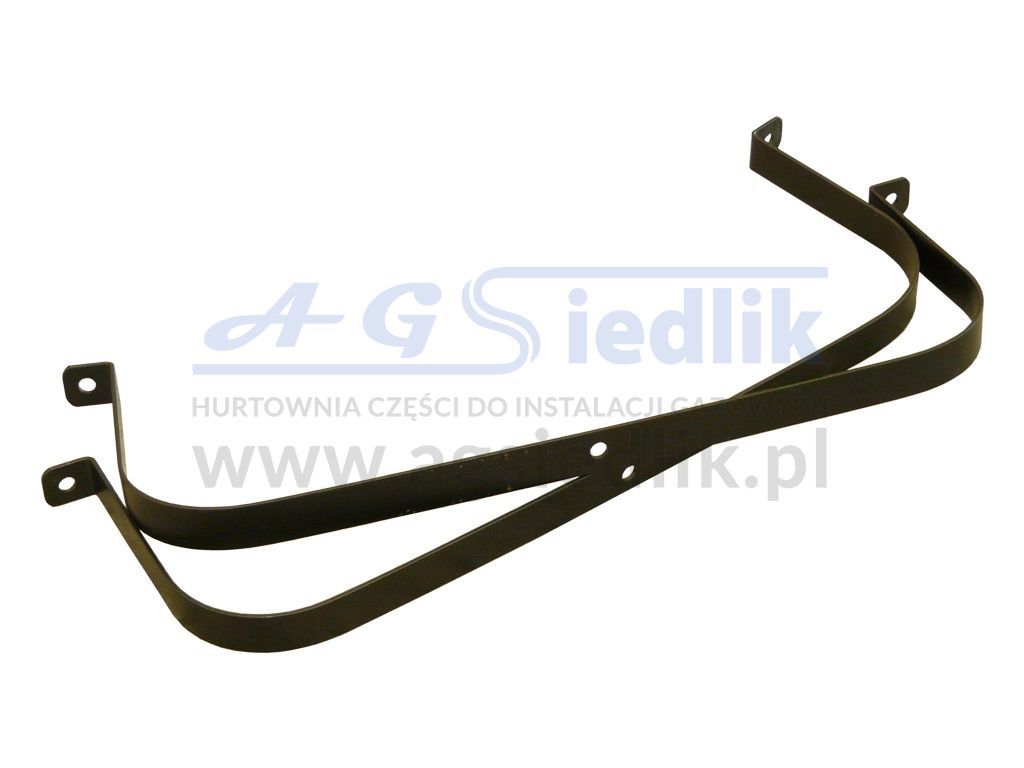

2 support straps for the tank
-
Mounting accessories: screws, washers, nuts
-
Documentation (TDT homologation required for inspection stations, valid for 10 years from the date of production)
Price includes 1 unit of the product.
