HANA H2001 GOLD – 4-Cylinder Injector Rail, Type C (Black), 20–30 HP
362,00 zł
294,31 zł Excl. VAT
Shopping without registration You do not need to register to place an order
Order by phone+48 603 775 778
Product Description

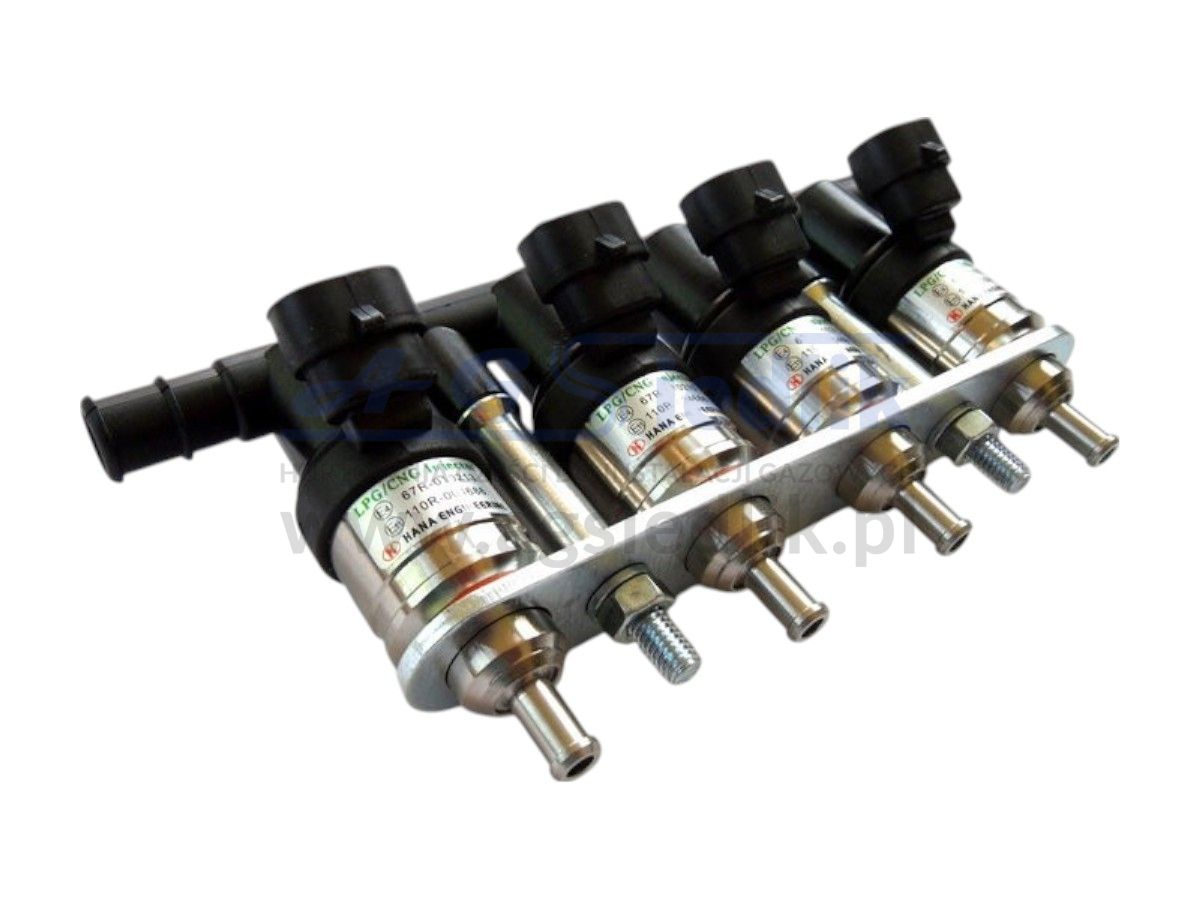

HANA GOLD H2001 fuel rail for 4 cylinders, type C (black)
Technical Data
-
Model: Gold H2001
-
Resistance: 1.9 Ohm
-
Nozzle port compatible with calibration nozzles
-
Suitable for engines with power: 20-30 HP per cylinder
-
Mounting method: rail-mounted
-
Connector type: VALTEK
Application Description
Below is a table describing the types and parameters of HANA H2001 injectors:
| HANA Type | Nozzle Type | Resistance | Power Range (HP) per Cylinder (±15%) | Power 4 cyl. | Power 6 cyl. | Power 8 cyl. | Working Pressure (bar) |
|---|---|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | - | 40 / 50 / 60 | 160–240 HP | 240–360 HP | 320–480 HP | 0.8 / 1.0 / 1.2 |
| Type A (Green) | Type A (Green) | - | 33 / 42 / 50 | 132–200 HP | 198–300 HP | 264–400 HP | |
| Type B (Red) | 2.4 mm Single Stripe | 1.9 Ohm | 26 / 32 / 39 | 104–156 HP | 156–234 HP | 208–312 HP | |
| Type C (Black) | 2.1 mm Double Stripes | 1.9 Ohm | 20 / 25 / 30 | 80–120 HP | 120–180 HP | 160–240 HP | |
| Type D (Purple) | 1.9 mm Triple Stripes | 1.9 Ohm | 15 / 19 / 24 | 60–96 HP | 90–144 HP | 120–192 HP |
Price applies to 1 unit of the product.
