HANA H2001 Type A+ (Blue) 40–60 HP Single Injector + 4-Cylinder Distributor
304,00 zł
247,15 zł Excl. VAT
Shopping without registration You do not need to register to place an order
Order by phone+48 603 775 778
Product Description

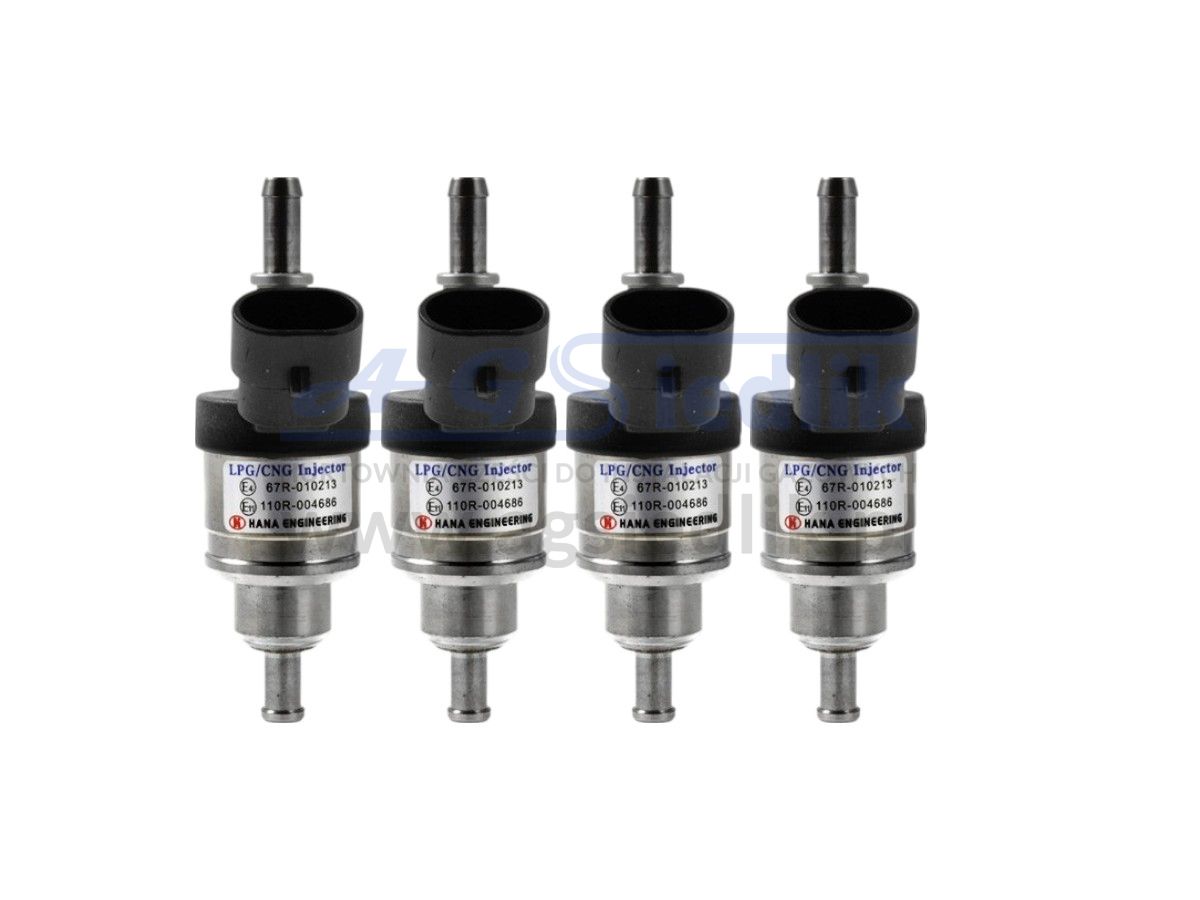

HANA H2001 Type A+ (Blue) 40–60 HP Wired (Set of 4)
Injector Technical Specifications:
-
Output: 42–60 HP per cylinder
-
Coil resistance: 1.3 Ω
-
Supply voltage: 12 V DC
-
Opening time: 2.36 ms
-
Closing time: 1.2 ms
-
Maximum operating pressure: 4.0 bar
-
Recommended operating pressure: 1.2 bar
-
Inlet fitting outer diameter: 12 mm
-
Outlet fittings outer diameter: 6 mm
-
Connector type: Superseal
-
Operating temperature range: –40°C to +120°C
-
Installation requires a 4-cylinder distributor (available separately)
Application Overview
Below is the application specification table for the HANA H2001 injector:
| HANA Model | HANA Type | Nozzle Type | Resistance | Power per Cylinder (±15%) | 4 Cylinders | 6 Cylinders | 8 Cylinders | Working Pressure |
|---|---|---|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | – | 1.3 Ω | 40 / 50 / 60 HP | 160–240 HP | 240–360 HP | 320–480 HP | 0.8 / 1.0 / 1.2 bar |
| Type A (Gold) | Type A (Green) | – | 1.9 Ω | 33 / 42 / 50 HP | 132–200 HP | 198–300 HP | 264–400 HP | – |
| Type B (Red) | 2.4 mm – 1 stripe | 1.9 Ω | 26 / 32 / 39 HP | 104–156 HP | 156–234 HP | 208–312 HP | – | |
| Type C (Black) | 2.1 mm – 2 stripes | 1.9 Ω | 20 / 25 / 30 HP | 80–120 HP | 120–180 HP | 160–240 HP | – | |
| Type D (Purple) | 1.9 mm – 3 stripes | 1.9 Ω | 15 / 19 / 24 HP | 60–96 HP | 90–144 HP | 120–192 HP | – |
The price applies to a set of 4 injectors.
