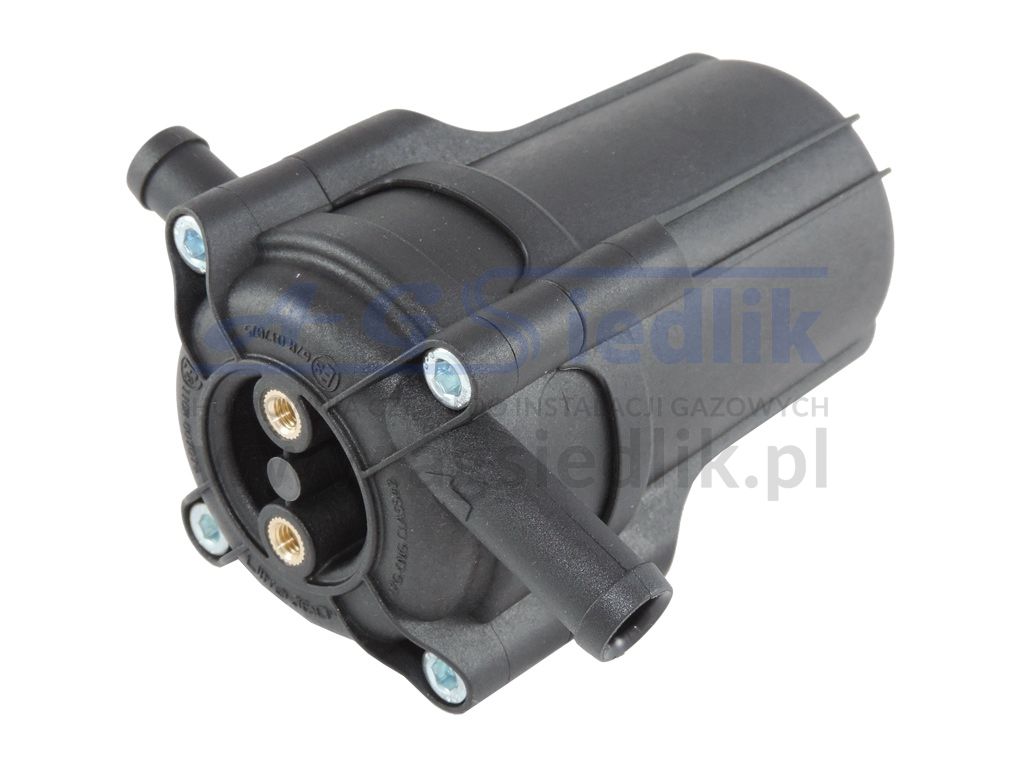

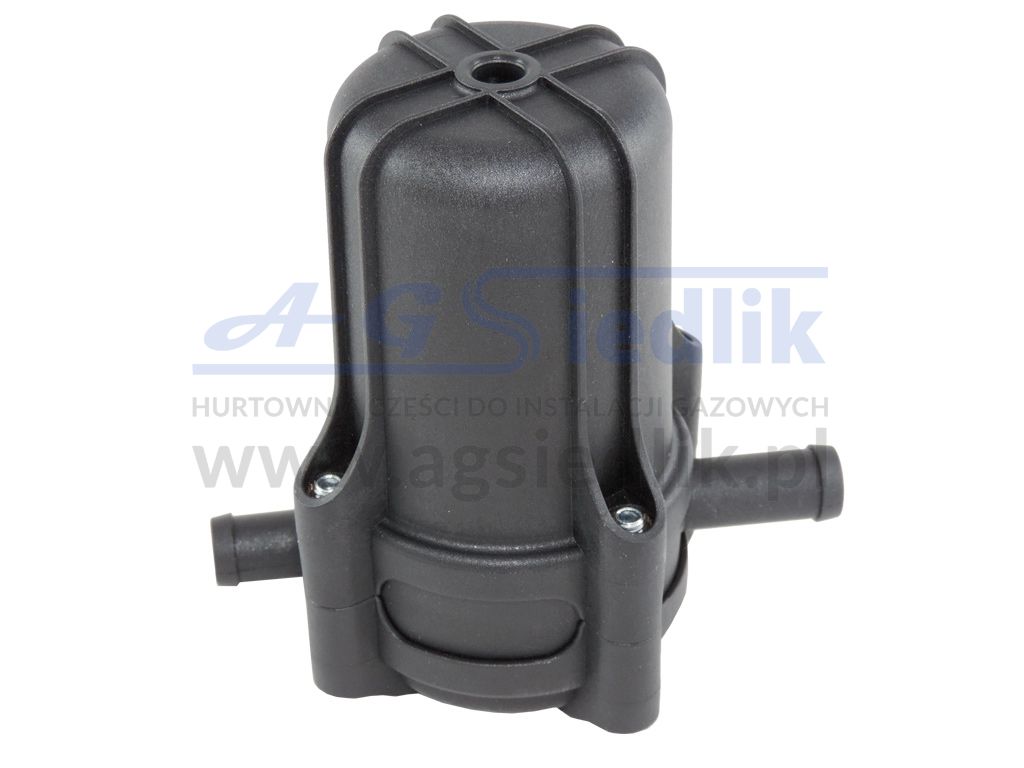

Alex Ultra 360° 16/12 Vapor Phase Filter (Fiberglass)

Product Description
Alex Ultra 360° 16/12 Vapor Phase Filter

360° Nozzle Installation

Technical Specifications

• Gas inlet: 16 mm

• Gas outlet: 12 mm

• Rated pressure: 4.5 bar

• Operating temperature: -20 to 120°C

• Replaceable filter element: fiberglass

Application Description
The original design of the filtering assembly ensures effective gas filtration.

The gas entering the filter is set into a swirling motion and directed downward through the housing.

During this process, due to the spiral flow, centrifugal force, and inertia, solid and liquid particles suspended in the gas are separated and trapped at the bottom of the filter.

Additionally, the filter element purifies the upward-returning gas stream from any remaining fine contaminants.

The inlet and outlet nozzles are mounted on separate, independent parts of the filter housing, allowing for full 360° adjustment of their relative angle.

This flexible configuration gives the installer maximum freedom in positioning the filter within the engine compartment.

Price is for 1 piece.
