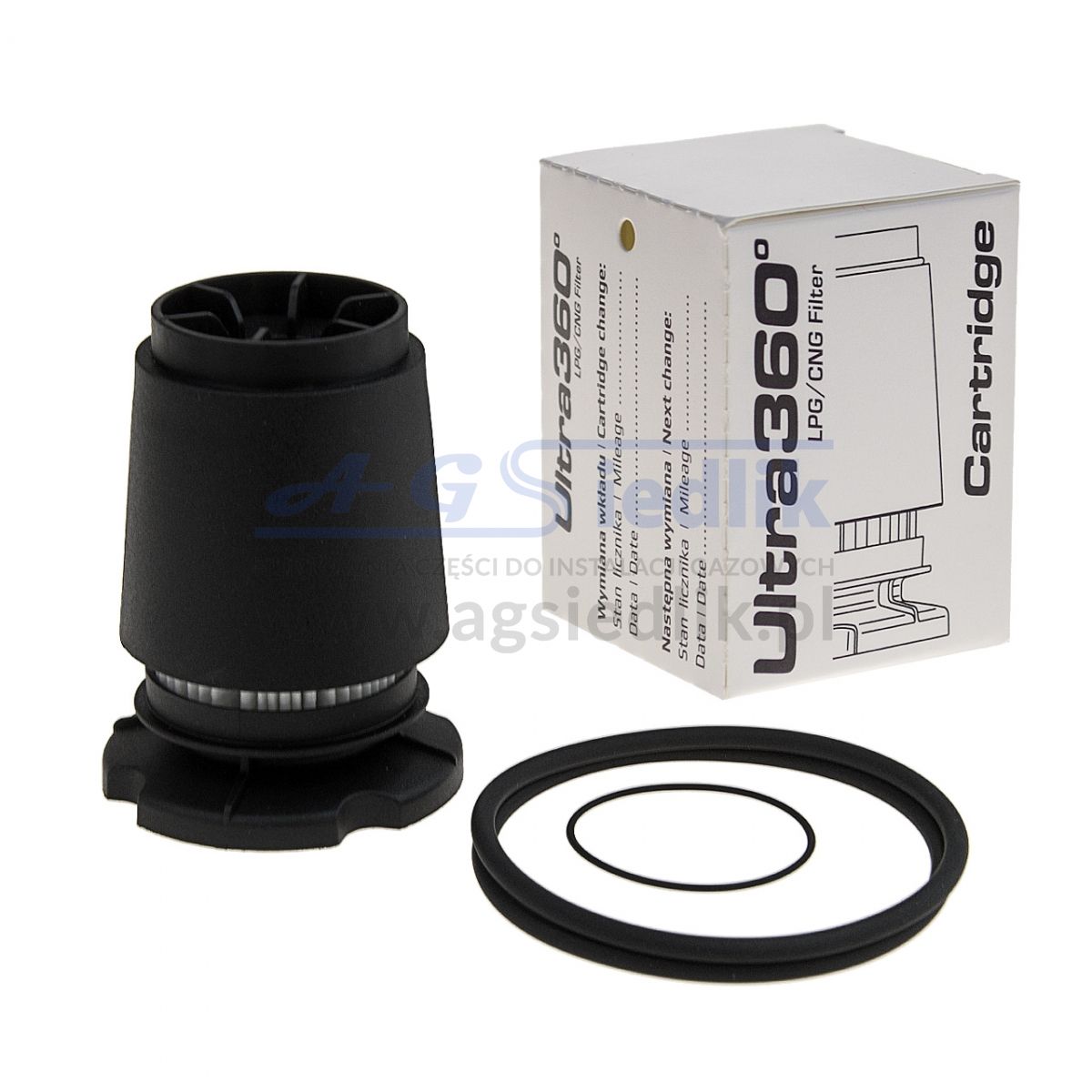

Alex Ultra 360° Vapor Phase Filter Element (Fiberglass) – With O-Rings

Product Description
Alex Ultra 360° Vapor Phase Filter Element (Fiberglass) with O-Rings

Technical Specifications

• Filter material: fiberglass

• Seals included for the filter

• Captures particles from 1 μm with 99% efficiency

• Filter element should be replaced once a year or every 15,000 km

Application Description
Effective filtration is ensured by the original design of the filter assembly.

The gas entering the filter is set into a swirling motion and directed downward through the housing.

Along the way, thanks to the swirling motion, centrifugal force, and inertia, solid and liquid particles suspended in the gas are separated and trapped at the bottom.

Additionally, the filter element purifies the upward-flowing gas stream from remaining fine impurities.

The inlet and outlet nozzles are mounted on separate, independent parts of the filter housing, allowing free adjustment of the angle between them.

This design provides installers with full flexibility in positioning the filter within the engine compartment.

Price applies to 1 piece.
