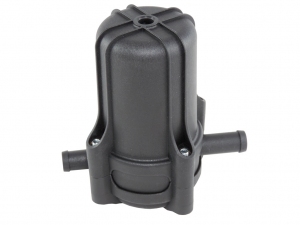

Alex Ultra 360° Vapor Phase Filter 12/12 (Fiberglass)
+48 603 775 778
Product Description
Alex Ultra 360° Vapor Phase Filter 12/12 (Fiberglass)
Technical Specifications
-
Gas inlet: 12 mm
-
Gas outlet: 12 mm
-
Rated pressure: 4.5 bar
-
Operating temperature: -20°C to +120°C
-
Filter element: Replaceable fiberglass insert
-
Fitting orientation: 360° adjustable connections
Application Description
The Alex Ultra 360° filter ensures effective gas purification through an innovative filtering assembly design.
Upon entering the filter, the gas is directed into a swirling motion, moving downward through the housing. Thanks to centrifugal force and inertia, solid and liquid particles are separated and collected at the bottom of the unit.
The fiberglass filter cartridge further purifies the gas as it flows back upward, capturing fine residual contaminants.
The filter’s inlet and outlet fittings are mounted on separate, adjustable components, allowing full 360° rotation. This design enables the installer to freely adjust the angle between the fittings, ensuring easy and flexible installation in various engine bay configurations.
Price applies to 1 piece.
