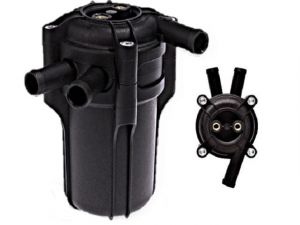

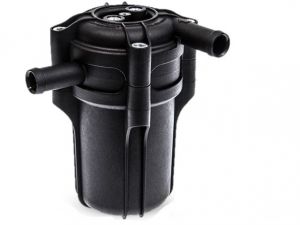

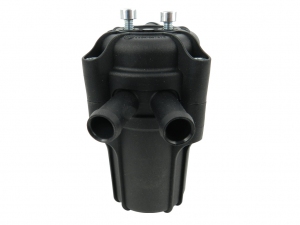

Alex Ultra 360° Vapor Phase Filter – Type Y 16/2x12 (Fiberglass)

Product Description
Alex Ultra 360° Vapor Phase Filter – Type Y 16/2x12

360° Nozzle Installation

Technical Specifications

• Gas inlet: 16 mm

• Gas outlets: 2 x 12 mm

• Rated pressure: 4.5 bar

• Operating temperature: -20 to 120°C

• Replaceable filter element: fiberglass

Application Description
The original design of the filter assembly ensures effective gas filtration.

The gas entering the filter is set into a swirling motion and directed downward through the housing.

Thanks to the swirling motion, centrifugal force, and inertia, solid and liquid particles suspended in the gas are separated and trapped at the bottom.

Additionally, the filter element purifies the upward-flowing gas stream from any remaining fine impurities.

The inlet and outlet nozzles are mounted on separate, independent parts of the filter housing, allowing for free adjustment of the angle between them.

This solution provides installers with full flexibility in positioning the filter within the engine compartment.

Price applies to 1 piece.
