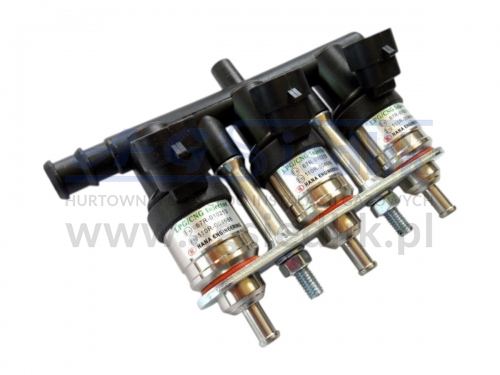

HANA H2001 - GOLD - 3-cylinder fuel rail, type B (red), 26-39 HP
276,00 zł
224,39 zł Excl. VAT
Shopping without registration You do not need to register to place an order
Order by phone+48 603 775 778
Product Description

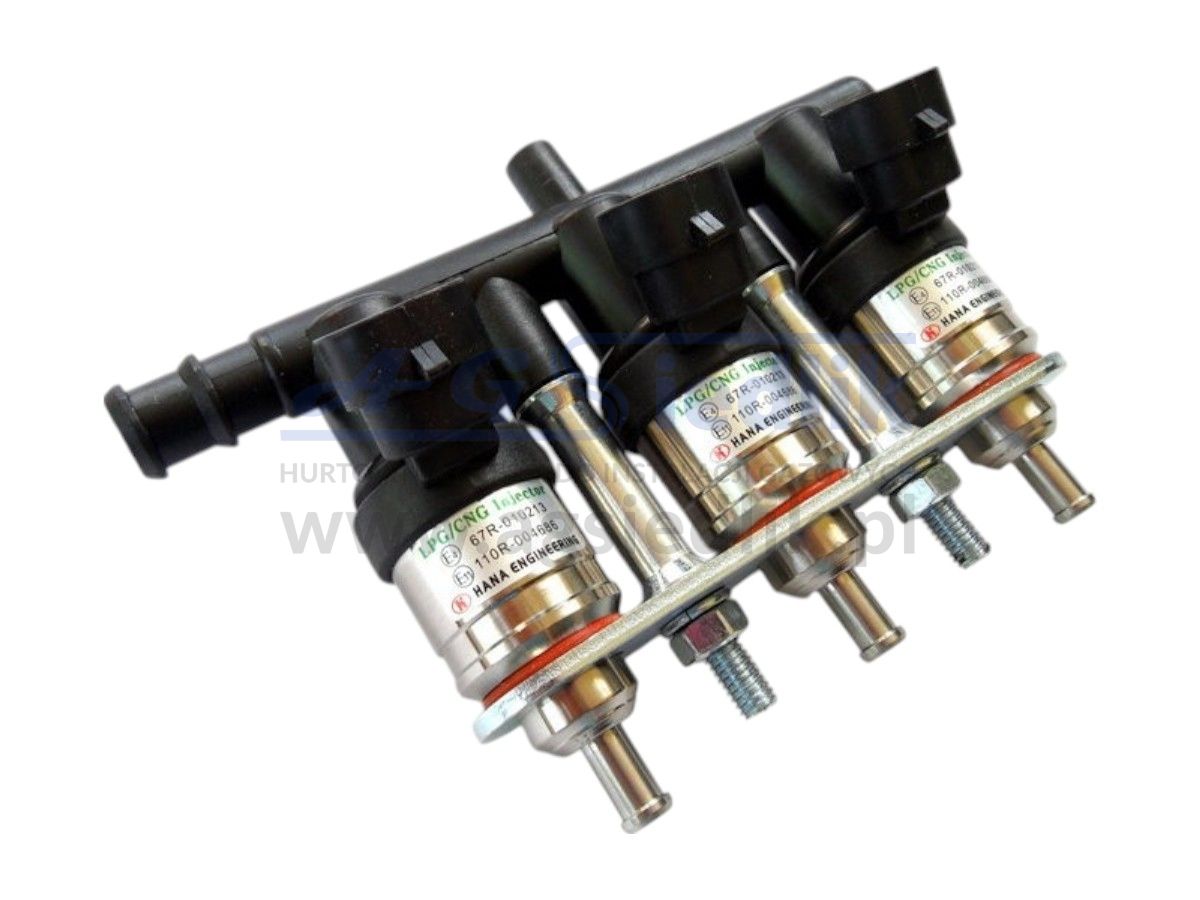

HANA GOLD H2001 fuel rail for 3 cylinders, type B (red)
Technical Data
-
Model: Gold H2001
-
Resistance: 1.9 Ohm
-

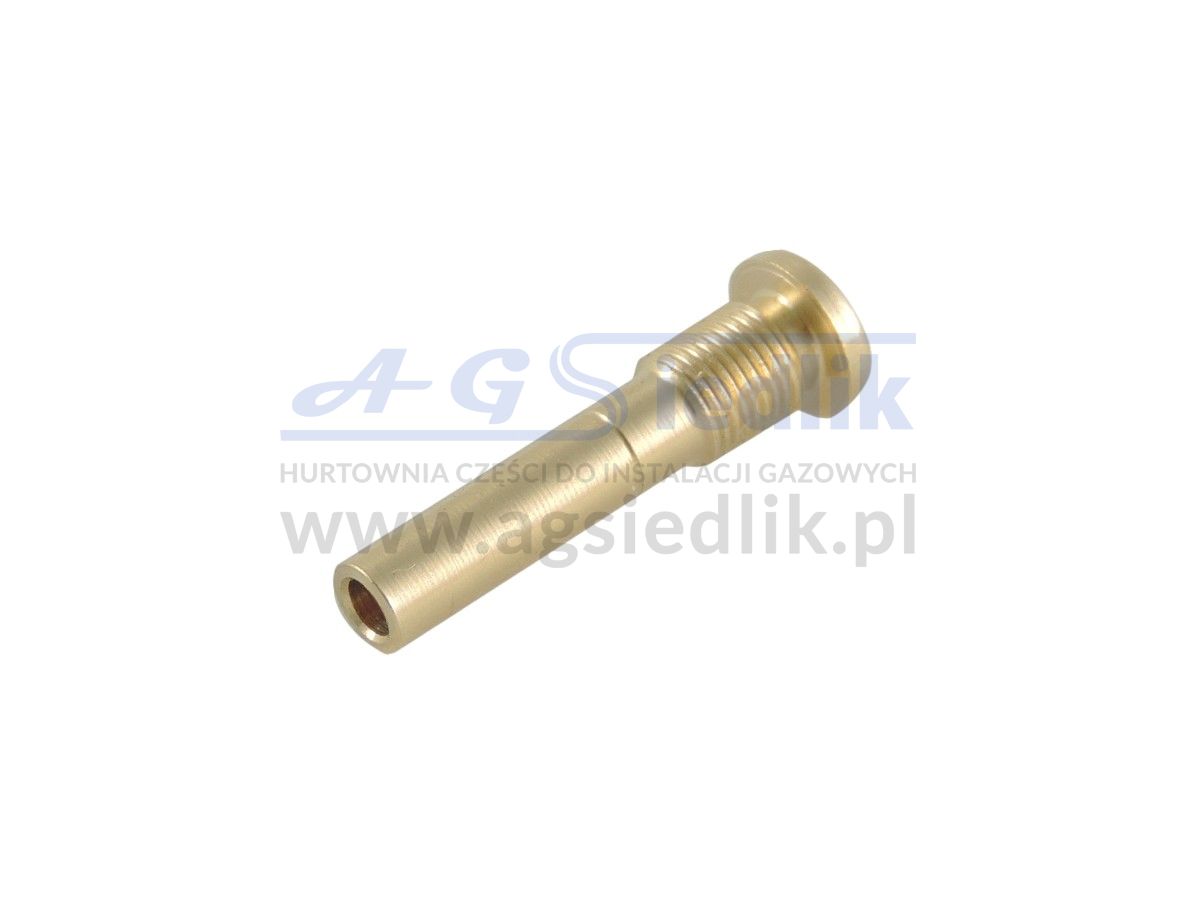

Nozzle port with the option to screw in calibration nozzles
-
Designed for engines with power: 26-39 HP per cylinder
-
Mounting method: rail-mounted
-
Connector type: VALTEK
Application Description
Below is a description to help select HANA H2001 injectors:
| HANA H2001 | HANA Type | Nozzle Type | Resistance | Power Range (HP) per Cylinder (±15%) | 4 Cylinders | 6 Cylinders | 8 Cylinders | Working Pressure (bar) |
|---|---|---|---|---|---|---|---|---|
| Type A+ (Blue) | Type A+ (Blue) | - | 1.3 Ohm | 40 / 50 / 60 | 160 ~ 240 HP | 240 ~ 360 HP | 320 ~ 480 HP | 0.8 / 1.0 / 1.2 |
| Type A (Gold) | Type A (Green) | - | 1.9 Ohm | 33 / 42 / 50 | 132 ~ 200 HP | 198 ~ 300 HP | 264 ~ 400 HP | |
| Type B (Red) | 2.4 mm Single Stripe | 1.9 Ohm | 26 / 32 / 39 | 104 ~ 156 HP | 156 ~ 234 HP | 208 ~ 312 HP | ||
| Type C (Black) | 2.1 mm Double Stripes | 1.9 Ohm | 20 / 25 / 30 | 80 ~ 120 HP | 120 ~ 180 HP | 160 ~ 240 HP | ||
| Type D (Purple) | 1.9 mm Triple Stripes | 1.9 Ohm | 15 / 19 / 24 | 60 ~ 96 HP | 90 ~ 144 HP | 120 ~ 192 HP |
Price applies to 1 unit of the product.
